Key takeaways
- Compact size enables quick embedding into 4.3 mm holes
- Supports various IC types including NXP ICODE SLIX
- Medically sterilisable and vibration resistant design
- Up to 200 mm read range in non-metallic environments
Talk to the product expert
Matthias Höß, Manager R&D and Project Management
Detailed product information

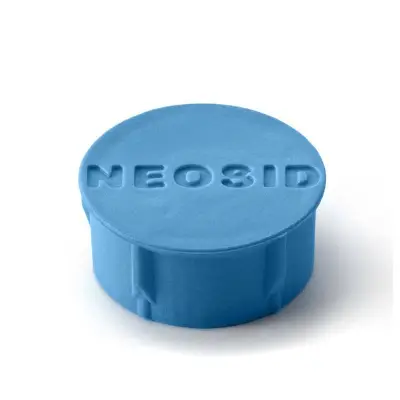

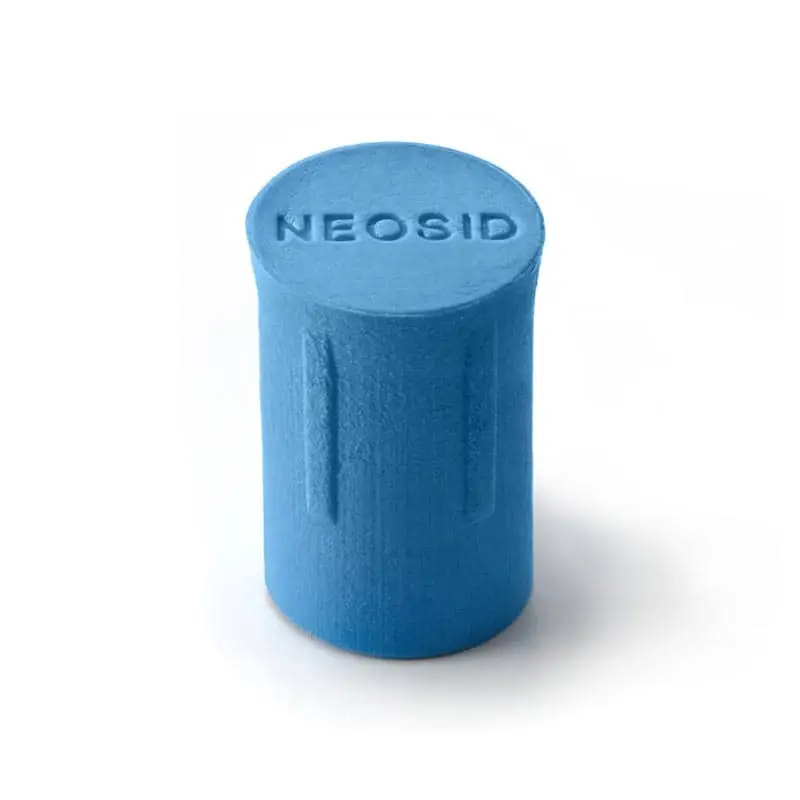

NeoTAG® Plug 4670, NeoTAG® Plug 8336, NeoTAG® Inlay 2659
Thanks to its press fit housing, the NeoTAG® Plug at just 4.7 x 7.1 mm in size can be quickly and simply embedded within a 4.3 mm hole in a metallic/nonmetallic object. The NeoTAG® is delivered in T&R and if needed, the attachment can be automated using an embedding aid.
When developing these remarkable little NeoTAG® transponders we have placed special emphasis on easy assembly and extreme durability – even under toughest conditions. The incredibly small RFID Transponder NeoTAG® is a perfect solution for the identification with a remarkably wide range – even in metallic environments.
Key Facts
2.6 x 2.6 x 5.9 millimetres
Also comes as press fit
different IC types available e.g. NXP ICODE SLIX / SLIX-S
Typical reading range in air and non-metallic objects is up to 200 mm for F2659 (Inlay / Plug)
Medically sterilisable
Vibration resistant
Storage capacity: up to 896/1280 bit
Applications
Marking of tools
Product tracing
Slaughterhouse hooks
Inventory control
Product Images
