Key takeaways
- Integrated 65° wide-range antenna with +33 dBm port power
- Embedded dual-core 800 MHz processor running Linux OS
- Supports latest EPC Gen2v2/ISO 18000-63 RFID standards
- PoE+/LAN connectivity with three antenna ports
- Rugged IP67 design suitable for outdoor industrial use
Talk to the product expert
Michael Kaiser, Director Product Management & Innovations
Detailed product information
52010292 ETSI | 52010300 FCC
The Kathrein ARU 3000 antenna RFID reader series is the most innovative RAIN RFID edge device with integrated 65° wide-range antenna. Its best-in-class 33-dBm UHF RF unit and 800 Mhz Dual Core processor it provides highest performance in ruggedized environments.
Scalable connectivity with PoE+/LAN and a second Ethernet port provides modularity and cost efficiency due to less infrastructure requirements.
Based on the latest RFID standards, such as EPC Gen2v2/ISO 18000-63, Kathrein ARU 3500 antenna reader supports all market-leading transponder chip features for security, authentication and encoding.
Key Features
Ruggedized high-end RAIN RFID reader with an integrated antenna
Powerful IoT gateway
Enhanced RF design
Integrated high secure memory module
3 antenna ports
+33 dBm port power
GPIO
PoE+
Basic computing module
Embedded dual-core 800 MHz PC
Open source Linux OS
Advanced LED visualization
IP67 outdoor use
Type approval for Europe, US and RoW
Applications
Manufacturing and Automotive
Logistics
Intelligent Transportation Systems

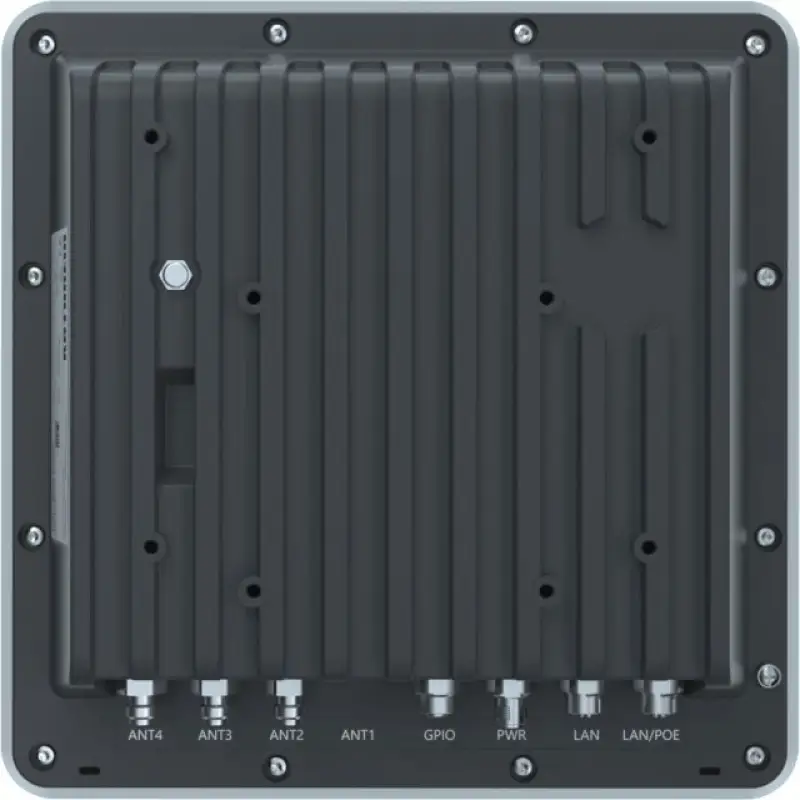

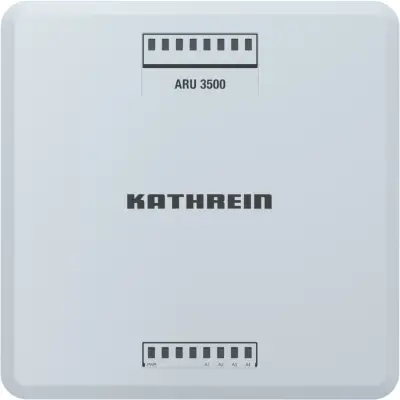

Product Images
