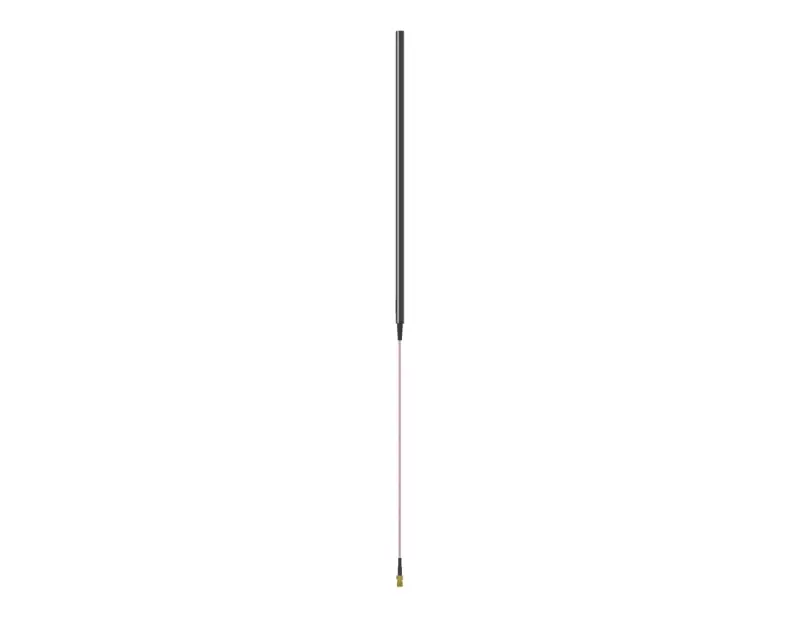

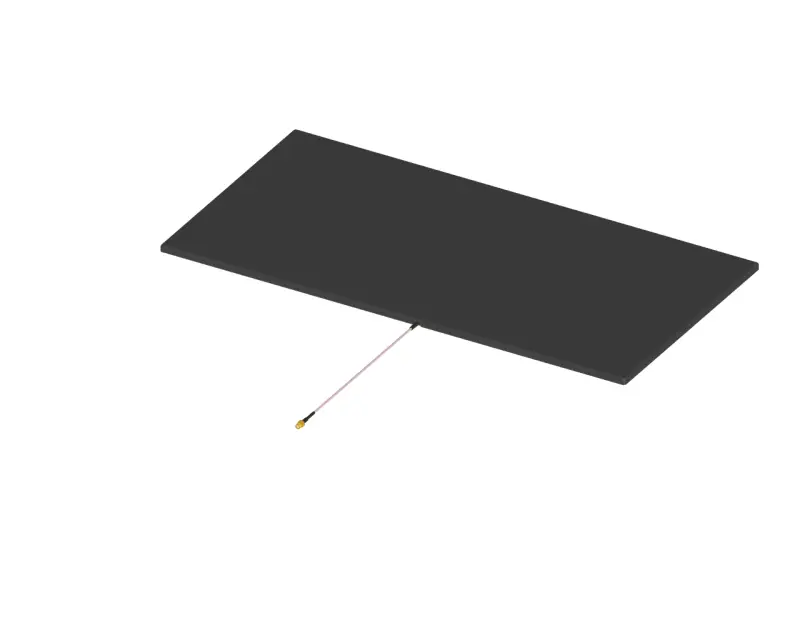

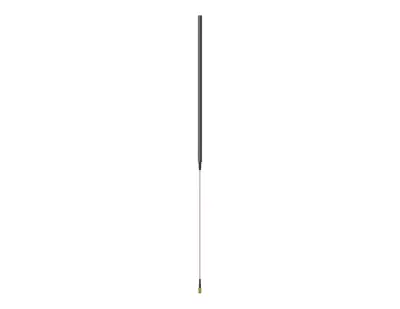

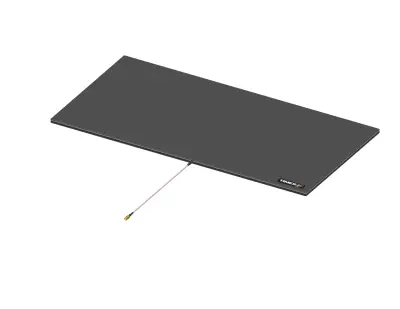

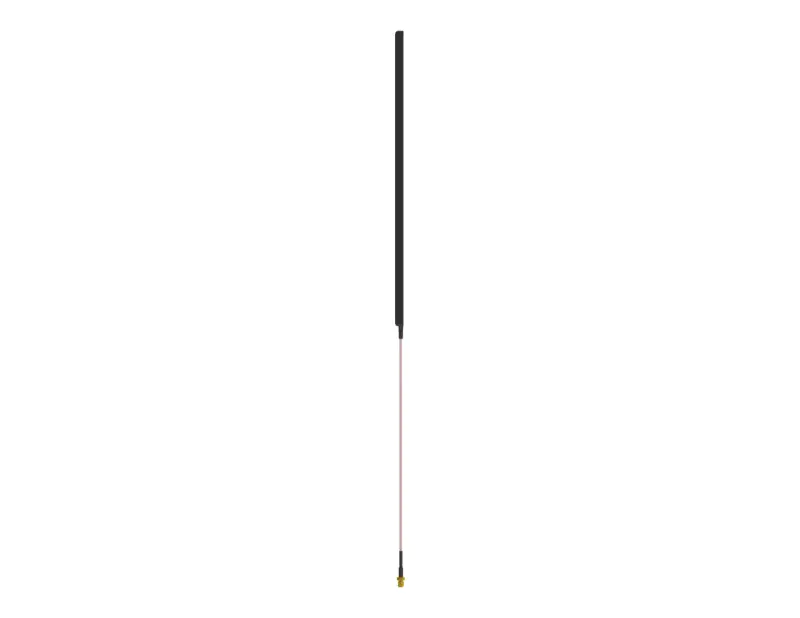

A5060 Circularly Polarised High Gain Antenna

An exciting new addition to the SlimLine range of multi-purpose antennas, the A5060 is a circular polarized high gain antenna with an ultra-low profile, offering a read range of up to 10 m / 33 ft.

The A5060 is designed with a multi-element array to avoid distortion for maximum readability in a highly reflective and densely populated tag environment. This makes the A5060 ideal for industrial portal applications.

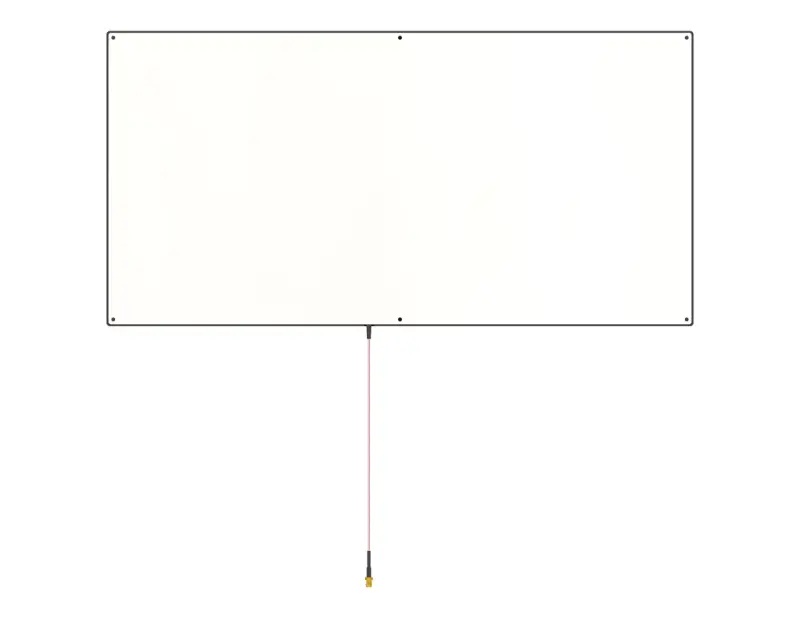

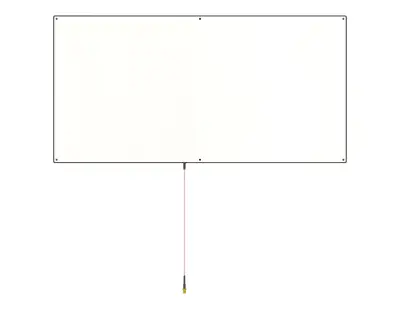

Its standard physical size (600 mm x 300 mm / 2’ x 1’) allows the A5060 to be readily mounted behind ceiling tiles, in cabinets or to cover large bench tops. The A5060 can be either flush mounted using the six integrated mounting holes or VESA mounted using the Times-7 Mounting Plate.

Key Features

• Environmental Rating: IP54

• Weight: Net: 1.48 kg / 3.3 lbs, Gross: 1.79 kg / 3.9 lbs

• Boxed unit dimensions: (L x W x D) 650 mm x 360 mm x 30 mm / 2.13’ x 1.18′ x 1.18′

• Radome Material: Fire retardant ABS

• High Gain, up to 10 m / 33 ft read range

• Multi-element array, ideal for reflective environment

Applications:

• Industrial Portal

• Laundry Applications

• Vehicle Tolling/Vehicle Access Control

• Tool Tracking

• Warehouse Shelving Application
