Times-7
is a high-tech company specializing in the design and manufacture of antennas. RAIN (UHF) RFID antennas are our speciality. Established in 2006, we have developed one of the largest product range of fixed RAIN RFID reader antennas.
Sections included
We Are Times-7!
Garry Lewis
CEO
“At Times-7, our customers come first. This is why we’re always innovating to bring you the best products and solutions for your applications. Established in 2006, we design and manufacture antennas that are recognized globally for their exceptional quality, durability, SlimLine™ design and performance. Our operations across sales, engineering, and production are housed under one roof in Petone, New Zealand, enabling seamless collaboration and quick turnaround times. We operate in over 55 countries through our extensive channel partner network.”
“At Times-7, our customers come first. This is why we’re always innovating to bring you the best products and solutions for your applications. Established in 2006, we design and manufacture antennas that are recognized globally for their exceptional quality, durability, SlimLine™ design and performance. Our operations across sales, engineering, and production are housed under one roof in Petone, New Zealand, enabling seamless collaboration and quick turnaround times. We operate in over 55 countries through our extensive channel partner network.”
Garry Lewis
CEO
We offer one of the broadest portfolios of off-the-shelf fixed RAIN RFID antennas on the market. Our antennas cover:
- A wide variety of RF characteristics
- Range of sizes
- Leading temperature performance
- Range of IP ratings
Need something a bit outside the box? We offer custom antenna solutions. If your deployment requires a specification that is not met by our standard portfolio, Times-7 can design and manufacture a customized antenna solution to meet your needs. This includes:
- Customized RF or mechanical specifications
- IP ratings
- Custom sizing
- Custom enclosures
- Different connector types
Stress tested and proven across diverse industry verticals from airport luggage tracking to intelligent shelving for real-time inventory, Times-7 SlimLine antennas are deployed around the world for reliable 24/7 operations. With their thin profile and inherent strength, SlimLine antennas can be installed in very tight spaces and in the most rugged environments.
At just 8-12mm in thickness, Times-7’s patented ultra thin RFID antenna range are significantly slimmer than any other antenna product on the market, opening up new opportunities to automate tracking of assets, and people and items.
The revolutionary SlimLine UHF RFID antenna range from Times-7 will lift the performance of any RFID system, putting you at the forefront of RFID antenna technology.
Our products are used in various industries, such as warehousing, logistics, retail, healthcare, and aviation. We provide exceptional customer service, responsive support, and technical expertise that ensure the success of RFID deployments.
We service customers across the globe through our well-established distribution network. Our channel partners generate crucial proximity to the markets, providing us with insights into local industry trends, as well as ensuring Times-7 antennas are easily accessible wherever you are.
All articles
With Times-7
-
Technology Article
OpenJos Kunnen, CTO of Times-7, on UHF RFID Technology in Smartphones
January 14, 20253 min
Technology Article
Jos Kunnen, CTO of Times-7, on UHF RFID Technology in Smartphones
January 14, 20253 min -
Technology Article

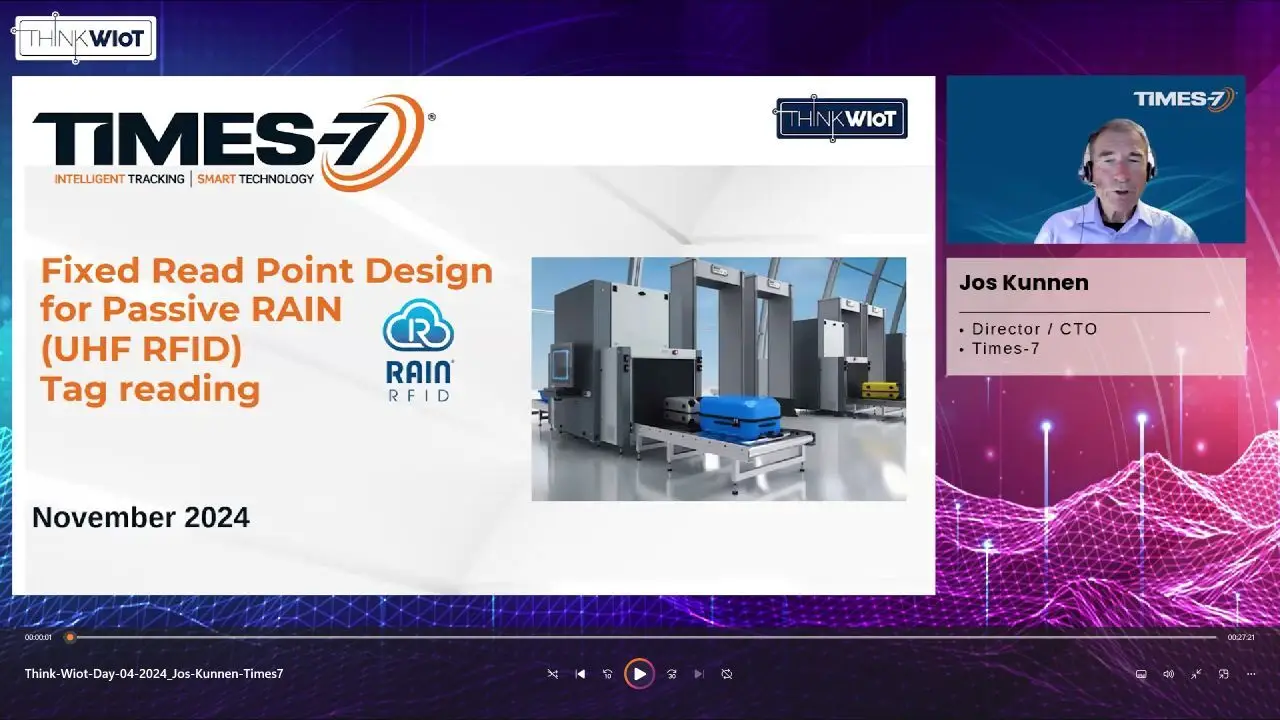

OpenJos Kunnen: Designing Effective RFID Infrastructure for Always-On Reading
December 05, 202426 min
Technology Article
Jos Kunnen: Designing Effective RFID Infrastructure for Always-On Reading
December 05, 202426 min -
Field Story
OpenDurable UHF RFID Antennas for Extreme Environments
November 07, 20243 min
Field Story
Durable UHF RFID Antennas for Extreme Environments
November 07, 20243 min -
Field Story
OpenRAIN RFID from New Zealand
February 06, 202411 min
Field Story
RAIN RFID from New Zealand
February 06, 202411 min
News from Times-7
Times-7 Features RAIN RFID Near Field Antenna A1130
Times-7 A5020 LX RFID Antenna Sets New Standards in Ruggedness and Performance
Times-7 A5020 LX RFID Antenna Sets New Standards in Ruggedness and Performance
RAIN RFID in Healthcare and What Antenna to Use
RAIN RFID in Healthcare and What Antenna to Use
Technical Specifications & Installations Tips for Shelving Antenna
Technical Specifications & Installations Tips for Shelving Antenna
Enhancing Airport Efficiency with RFID Technology
Enhancing Airport Efficiency with RFID Technology
Enhancing RFID Applications with Precision and Coverage
Enhancing RFID Applications with Precision and Coverage
The Decade-Long RFID Partnership: Times-7 and Arcadian
The Decade-Long RFID Partnership: Times-7 and Arcadian
The Story Behind Times-7
The Story Behind Times-7
Jos Kunnen Appointed to Board of Directors of RAIN Alliance
Jos Kunnen Appointed to Board of Directors of RAIN Alliance
Creating a Close Proximity Read Zone with a Near Field Antenna
Creating a Close Proximity Read Zone with a Near Field Antenna
Times-7 Introduces Jack McCrea
Times-7 Introduces Jack McCrea
Get in touch with an expert.
Zaina Shareef
Sales and Marketing Manager
Your message was sent successfully!
Thank you for reaching out. We’ll get back to you shortly!
Oops!
Something went wrong. Please try again later.
Processing!
Thank you for your message. We are processing the information.
Products from Times-7
Slimline A5020 RFID Antenna Family
The recessed corner mounting holes of the A5020 support 100 x 100mm VESA spaced mounting brackets, as shown in the picture.
Front view
Due to the slim design of the A5020 CX, LX, CP, MR and NF the antennas are equipped with SMA connectors.
Antenna selection guide
-
The recessed corner mounting holes of the A5020 support 100 x 100mm VESA spaced mounting brackets, as shown in the picture.
-
Front view
-
Due to the slim design of the A5020 CX, LX, CP, MR and NF the antennas are equipped with SMA connectors.
-
Antenna selection guide
Technologies
The A5020 Antenna Series is one of our flagship products. It is known for its robust yet compact design, making it an essential solution for a wide range of applications.
In designing the A5020 Antenna Series, we have stayed true to our responsive, reliable, and innovative values. We have listened intently and designed a reliable antenna based on your feedback. You told us you valued:
- A slim antenna that can be used inside or out.
- IP68-IP69K rated antennas to ensure performance in wet and dirty locations.
- A robust antenna that can withstand the rigour of industrial environments.
- An easy to mount antenna using standard VESA mounts.
- A good looking antenna that blends into the background.
- A5020CP: Circularly Polarized Antenna
The A5020CP Circularly Polarized Antenna is a versatile solution with a compact design and advanced performance. The antenna’s uniform radiating pattern minimizes stray reads, simplifying RFID read point design and ensuring consistent, accurate tracking. Built for durability, the IP68-rated A5020CP is engineered to withstand harsh outdoor environments. - A5020NF: Nearfield Antenna
The A5020 NearField antenna impresses with an extremely close read range of up to 10cm / 4” from the antenna’s surface suitable for tap or touch applications. Its pleasing aesthetics and timeless design blends beautifully with most interiors and allows both flush
and VESA mounting. - A5020MR: Mid-Range Antenna
The A5020MR is designed to operate in complex, busy environments where stray reads risk productivity and accuracy. This antenna is specifically tuned to read just beyond the near-field zone, ensuring items in the mid-range proximity of up to 1.5m are accurately tracked while ignoring those further away. - A5020LX: Linear Extreme Antenna
The A5020LX is designed to operate in environments where temperature, dirt, and water levels are extreme. Being IP69k rated, it can withstand high-pressure water cleaning, making it ideal for situations where hygiene is critical, and equipment is subject to regular cleaning. It has also been designed for the medical
industry’s need to store vaccines, organs, and tissue at temperatures as low as -90°C (194°F ). - A5020CX: Circular Extreme Antenna
The A5020CX combines the high-performance circularly polarized RFID capabilities of the A5020CP with the ultra-rugged durability of the A5020LX. Designed for harsh environments, the A5020CX boasts an IP69K rating, making it resistant to highpressure water cleaning and suitable for extreme conditions such as outdoor installations, food processing, and industrial asset tracking.
The antennas in the A5020 family are all versatile and can be used in customer-facing and indoor /outdoor applications. However, each member of the family has been designed with specific applications in mind. The following are examples of where you may choose a specific A5020 variant.
Circularly Polarized Antenna: A5020CP
- Retail
- Multi-purpose
Near Field: A5020NF
- Direct contact reads
- Tap ‘n Go and touch applications
Mid Range: A5020MR
- Kiosk / Self Check Out / POS
- Cabinetry and Shelves
Linear Extreme: A5020LX
- Deep Freezer (-90°C)
- Food, Meat and Chemical Manufacturing IP69K Processes
Circular Extreme IP69K: A5020CX
- Clean Rooms
- Waste Management
Jos Kunnen, CTO/Director at Times-7 presenting the Slimline A5020 Antenna Family on YouTube.
The A5020 Antenna Series is one of our flagship products. It is known for its robust yet compact design, making it an essential solution for a wide range of applications.
In designing the A5020 Antenna Series, we have stayed true to our responsive, reliable, and innovative values. We have listened intently and designed a reliable antenna based on your feedback. You told us you valued:
- A slim antenna that can be used inside or out.
- IP68-IP69K rated antennas to ensure performance in wet and dirty locations.
- A robust antenna that can withstand the rigour of industrial environments.
- An easy to mount antenna using standard VESA mounts.
- A good looking antenna that blends into the background.
- A5020CP: Circularly Polarized Antenna
The A5020CP Circularly Polarized Antenna is a versatile solution with a compact design and advanced performance. The antenna’s uniform radiating pattern minimizes stray reads, simplifying RFID read point design and ensuring consistent, accurate tracking. Built for durability, the IP68-rated A5020CP is engineered to withstand harsh outdoor environments. - A5020NF: Nearfield Antenna
The A5020 NearField antenna impresses with an extremely close read range of up to 10cm / 4” from the antenna’s surface suitable for tap or touch applications. Its pleasing aesthetics and timeless design blends beautifully with most interiors and allows both flush
and VESA mounting. - A5020MR: Mid-Range Antenna
The A5020MR is designed to operate in complex, busy environments where stray reads risk productivity and accuracy. This antenna is specifically tuned to read just beyond the near-field zone, ensuring items in the mid-range proximity of up to 1.5m are accurately tracked while ignoring those further away. - A5020LX: Linear Extreme Antenna
The A5020LX is designed to operate in environments where temperature, dirt, and water levels are extreme. Being IP69k rated, it can withstand high-pressure water cleaning, making it ideal for situations where hygiene is critical, and equipment is subject to regular cleaning. It has also been designed for the medical
industry’s need to store vaccines, organs, and tissue at temperatures as low as -90°C (194°F ). - A5020CX: Circular Extreme Antenna
The A5020CX combines the high-performance circularly polarized RFID capabilities of the A5020CP with the ultra-rugged durability of the A5020LX. Designed for harsh environments, the A5020CX boasts an IP69K rating, making it resistant to highpressure water cleaning and suitable for extreme conditions such as outdoor installations, food processing, and industrial asset tracking.
The antennas in the A5020 family are all versatile and can be used in customer-facing and indoor /outdoor applications. However, each member of the family has been designed with specific applications in mind. The following are examples of where you may choose a specific A5020 variant.
Circularly Polarized Antenna: A5020CP
- Retail
- Multi-purpose
Near Field: A5020NF
- Direct contact reads
- Tap ‘n Go and touch applications
Mid Range: A5020MR
- Kiosk / Self Check Out / POS
- Cabinetry and Shelves
Linear Extreme: A5020LX
- Deep Freezer (-90°C)
- Food, Meat and Chemical Manufacturing IP69K Processes
Circular Extreme IP69K: A5020CX
- Clean Rooms
- Waste Management
Jos Kunnen, CTO/Director at Times-7 presenting the Slimline A5020 Antenna Family on YouTube.
SlimLine A8065 Combo
Antenna selection guide
Use Cases
Technologies
Industries
The SlimLine A8065 Combo is a high performing and aesthetically pleasing Doorway RFID Portal Application with absolutely no compromises on spatial dimension offering a 360° reading coverage.
Its ultra-low profile and slim dimensions give it a snug fit into door frames, which makes the application particularly suitable for people/attendees tracking in conferences and other high foot traffic events. Mounted on the sides and the top of the door frame, the solution combines all three polarizations to achieve the best and densest reading range, regardless of tag orientation.
- Dimensions: 700 x 88 x 10.5 mm
- Frequency Range: 902-928MHz (FCC); 865-868MHz (ETSI)
- Connector Type: SMA female side fly lead (300mm / 1‘)
- 360° reading coverage regardless of tag orientation
- Slim dimensions allow snug fit into door frames
- For high foot traffic events
The SlimLine A8065 Combo is a high performing and aesthetically pleasing Doorway RFID Portal Application with absolutely no compromises on spatial dimension offering a 360° reading coverage.
Its ultra-low profile and slim dimensions give it a snug fit into door frames, which makes the application particularly suitable for people/attendees tracking in conferences and other high foot traffic events. Mounted on the sides and the top of the door frame, the solution combines all three polarizations to achieve the best and densest reading range, regardless of tag orientation.
- Dimensions: 700 x 88 x 10.5 mm
- Frequency Range: 902-928MHz (FCC); 865-868MHz (ETSI)
- Connector Type: SMA female side fly lead (300mm / 1‘)
- 360° reading coverage regardless of tag orientation
- Slim dimensions allow snug fit into door frames
- For high foot traffic events
SlimLine A7030C Shelving Antenna
SlimLine A7030C
Six A7030C antennas configured in an array, with flip side image of interconnecting feet.
-
SlimLine A7030C
-
Six A7030C antennas configured in an array, with flip side image of interconnecting feet.
-
Technologies
Part of the SlimLine range of shelving antennas, the A7030C with its innovative ‘Array-Ability’ design offers a highly scalable and customised antenna solution for a wide range of RFID deployments.
At just 8.5 mm / 0.3 in. thick, the A7030C combines ultra-low profile and intelligent scalable design, with the performance of a circularly polarized UHF antenna. With a highly durable ABS radome and flexible easy mounting options, including the use of innovative ‘Array-Ability’ feet, the A7030C is ideal for existing shelving systems or embedding into smart cabinet systems, providing for retail item level tracking, tool tracking, real-time asset & inventory management – it’s quite simply the smartest antenna on the shelf.
- Dimensions: 300 mm x 300 mm x 8.5 mm (11.5 mm / with feet) || 11.81″ x 11.81″ x 0.33″ (0.45″ / with feet)
- Frequency Range: 902-928MHz (FCC); 865-868MHz (ETSI)
- Connector Type: SMA female standard
- Antenna Gain: 6dBi Circular
Part of the SlimLine range of shelving antennas, the A7030C with its innovative ‘Array-Ability’ design offers a highly scalable and customised antenna solution for a wide range of RFID deployments.
At just 8.5 mm / 0.3 in. thick, the A7030C combines ultra-low profile and intelligent scalable design, with the performance of a circularly polarized UHF antenna. With a highly durable ABS radome and flexible easy mounting options, including the use of innovative ‘Array-Ability’ feet, the A7030C is ideal for existing shelving systems or embedding into smart cabinet systems, providing for retail item level tracking, tool tracking, real-time asset & inventory management – it’s quite simply the smartest antenna on the shelf.
- Dimensions: 300 mm x 300 mm x 8.5 mm (11.5 mm / with feet) || 11.81″ x 11.81″ x 0.33″ (0.45″ / with feet)
- Frequency Range: 902-928MHz (FCC); 865-868MHz (ETSI)
- Connector Type: SMA female standard
- Antenna Gain: 6dBi Circular
A5060 Circular High Gain RFID Antenna
Use Cases
Technologies
Industries
An exciting new addition to the SlimLine range of multi-purpose antennas, the A5060 is a circular polarized high gain antenna with an ultra-low profile, offering a read range of up to 10 m / 33 ft.
The A5060 is designed with a multi-element array to avoid distortion for maximum readability in a highly reflective and densely populated tag environment. This makes the A5060 ideal for industrial portal applications.
Its standard physical size (600 mm x 300 mm / 2’ x 1’) allows the A5060 to be readily mounted behind ceiling tiles, in cabinets or to cover large bench tops. The A5060 can be either flush mounted using the six integrated mounting holes or VESA mounted using the Times-7 Mounting Plate.
- Environmental Rating: IP54
- Weight: Net: 1.48 kg / 3.3 lbs, Gross: 1.79 kg / 3.9 lbs
- Boxed unit dimensions: (L x W x D) 650 mm x 360 mm x 30 mm / 2.13’ x 1.18′ x 1.18′
- Radome Material: Fire retardant ABS
- High Gain, up to 10 m / 33 ft read range
- Multi-element array, ideal for reflective environment
Applications:
- Industrial Portal
- Laundry Applications
- Vehicle Tolling/Vehicle Access Control
- Tool Tracking
- Warehouse Shelving Application
George Mitchell, Business Development Manager at Times-7 presenting the Slimline A5020 Antenna Family at YouTube.
An exciting new addition to the SlimLine range of multi-purpose antennas, the A5060 is a circular polarized high gain antenna with an ultra-low profile, offering a read range of up to 10 m / 33 ft.
The A5060 is designed with a multi-element array to avoid distortion for maximum readability in a highly reflective and densely populated tag environment. This makes the A5060 ideal for industrial portal applications.
Its standard physical size (600 mm x 300 mm / 2’ x 1’) allows the A5060 to be readily mounted behind ceiling tiles, in cabinets or to cover large bench tops. The A5060 can be either flush mounted using the six integrated mounting holes or VESA mounted using the Times-7 Mounting Plate.
- Environmental Rating: IP54
- Weight: Net: 1.48 kg / 3.3 lbs, Gross: 1.79 kg / 3.9 lbs
- Boxed unit dimensions: (L x W x D) 650 mm x 360 mm x 30 mm / 2.13’ x 1.18′ x 1.18′
- Radome Material: Fire retardant ABS
- High Gain, up to 10 m / 33 ft read range
- Multi-element array, ideal for reflective environment
Applications:
- Industrial Portal
- Laundry Applications
- Vehicle Tolling/Vehicle Access Control
- Tool Tracking
- Warehouse Shelving Application
George Mitchell, Business Development Manager at Times-7 presenting the Slimline A5020 Antenna Family at YouTube.
True NearField RFID Antenna Family
Technologies
Industries
Presenting the Times-7 New True NearField Antenna Family: A1115, A1130, A1163
The new True NearField Antenna Series is explicitly designed for applications, which require “near zone only” tag detection or involve metals, liquid and other challenging materials.
With hardly any far-field components and no surface dead spots, the Times-7 True NearField antennas provide reliable tag reads within a very constricted read zone.
Thanks to the unique antenna design the True NearField antenna series offers three dimensions. From a compact 150 x 150 mm to a large 300 x 600 mm footprint. Furthermore, they are available in black or white.
All three antennas provide integrated mounting holes on the rear side, which can be drilled through for using mounting screws. In addition, each antenna is provided with an optional self-adhesive rubber feet kit to stop the antenna from slipping.
- Radome Material: Fire retardant ABS (available in black and white, see order information
- Environmental Rating: IP54
- Operating Temperature: 0 to +50 °C / -30 to +50 °C
- Storage Temperature: +32 to +122 °F / -22 to +122 °F
- Frequency Range: 865 – 867 MHz, 902 – 928 MHz
Applications:
- Metal & Liquids
- POS
- Shelving
George Mitchell, Business Development Manager at Times-7 presenting the Slimline A5020 Antenna Family at YouTube.
Presenting the Times-7 New True NearField Antenna Family: A1115, A1130, A1163
The new True NearField Antenna Series is explicitly designed for applications, which require “near zone only” tag detection or involve metals, liquid and other challenging materials.
With hardly any far-field components and no surface dead spots, the Times-7 True NearField antennas provide reliable tag reads within a very constricted read zone.
Thanks to the unique antenna design the True NearField antenna series offers three dimensions. From a compact 150 x 150 mm to a large 300 x 600 mm footprint. Furthermore, they are available in black or white.
All three antennas provide integrated mounting holes on the rear side, which can be drilled through for using mounting screws. In addition, each antenna is provided with an optional self-adhesive rubber feet kit to stop the antenna from slipping.
- Radome Material: Fire retardant ABS (available in black and white, see order information
- Environmental Rating: IP54
- Operating Temperature: 0 to +50 °C / -30 to +50 °C
- Storage Temperature: +32 to +122 °F / -22 to +122 °F
- Frequency Range: 865 – 867 MHz, 902 – 928 MHz
Applications:
- Metal & Liquids
- POS
- Shelving
George Mitchell, Business Development Manager at Times-7 presenting the Slimline A5020 Antenna Family at YouTube.
Slimline A5010 Circular Polarized RFID Antenna
side view
rear view
-
-
side view
-
rear view
Technologies
Industries
The Times-7 industry-leading ultra-low profile design is now available in a compact 250 mm / 10 inch square footprint. IP67 rated for permanent outdoor use and built to Times-7’s high standard for quality and robustness, the circularly polarized A5010 creates a new benchmark for multi-purpose UHF RFID antennas.
- Up to 8 m / 29 ft. read range
- Just 14 mm / 0.55 in. thick High performance & rugged design
- IP67 rating for permanent outdoor use and industrial applications
Applications:
- Medical & Pharmaceutical
- Retail
- Warehousing
George Mitchell, Business Development Manager at Times-7 presenting the Slimline A5010 Circular Polarized RFID Antenna on YouTube.
The Times-7 industry-leading ultra-low profile design is now available in a compact 250 mm / 10 inch square footprint. IP67 rated for permanent outdoor use and built to Times-7’s high standard for quality and robustness, the circularly polarized A5010 creates a new benchmark for multi-purpose UHF RFID antennas.
- Up to 8 m / 29 ft. read range
- Just 14 mm / 0.55 in. thick High performance & rugged design
- IP67 rating for permanent outdoor use and industrial applications
Applications:
- Medical & Pharmaceutical
- Retail
- Warehousing
George Mitchell, Business Development Manager at Times-7 presenting the Slimline A5010 Circular Polarized RFID Antenna on YouTube.
Get in touch with an expert.
George Mitchell
Business Development Manager
Your message was sent successfully!
Thank you for reaching out. We’ll get back to you shortly!
Oops!
Something went wrong. Please try again later.
Processing!
Thank you for your message. We are processing the information.
Get in touch with an expert.
Zaina Shareef
Sales and Marketing Manager
Your message was sent successfully!
Thank you for reaching out. We’ll get back to you shortly!
Oops!
Something went wrong. Please try again later.
Processing!
Thank you for your message. We are processing the information.
We’re Here For You!
Zaina Shareef
Sales and Marketing Manager
Jos Kunnen
CTO/Director
George Mitchell
Business Development Manager
Garry Lewis
CEO
Daniel Eisen
RFID Engineer
Daniel Toomey
Customer Success and Sales Support Specialist
Get in touch with an expert.
Zaina Shareef
Sales and Marketing Manager
Your message was sent successfully!
Thank you for reaching out. We’ll get back to you shortly!
Oops!
Something went wrong. Please try again later.
Processing!
Thank you for your message. We are processing the information.
Get in touch with an expert.
Jos Kunnen
CTO/Director
Your message was sent successfully!
Thank you for reaching out. We’ll get back to you shortly!
Oops!
Something went wrong. Please try again later.
Processing!
Thank you for your message. We are processing the information.
Get in touch with an expert.
George Mitchell
Business Development Manager
Your message was sent successfully!
Thank you for reaching out. We’ll get back to you shortly!
Oops!
Something went wrong. Please try again later.
Processing!
Thank you for your message. We are processing the information.
Get in touch with an expert.
Garry Lewis
CEO
Your message was sent successfully!
Thank you for reaching out. We’ll get back to you shortly!
Oops!
Something went wrong. Please try again later.
Processing!
Thank you for your message. We are processing the information.
Get in touch with an expert.
Daniel Eisen
RFID Engineer
Your message was sent successfully!
Thank you for reaching out. We’ll get back to you shortly!
Oops!
Something went wrong. Please try again later.
Processing!
Thank you for your message. We are processing the information.
Get in touch with an expert.
Daniel Toomey
Customer Success and Sales Support Specialist
Your message was sent successfully!
Thank you for reaching out. We’ll get back to you shortly!
Oops!
Something went wrong. Please try again later.
Processing!
Thank you for your message. We are processing the information.
Your message was sent successfully!
Thank you for reaching out. We'll get back to you shortly!
Oops!
Something went wrong. Please try again later.
Processing!
Thank you for your message. We are processing the information.
Upcoming events
International Exhibition | Summit
Date
22. - 23.
October 2025
Location
Wiesbaden,
Germany
