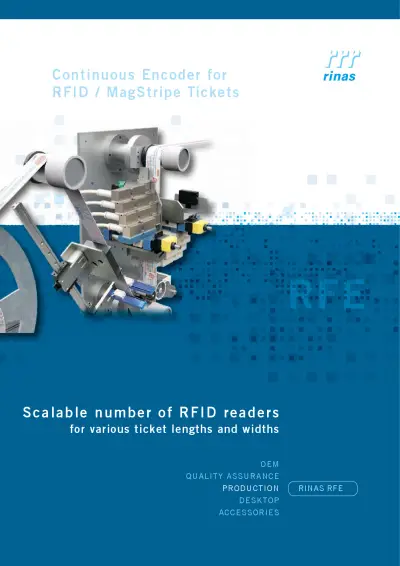

Rinas RFE Continuous Encoder

High-Throughput RFID Ticket Encoding & Personalization System

The RFE system is designed specifically for the RFID ticketing community, offering efficient processing of large volumes of pre-printed tickets. It accepts continuous tickets either in fan-folded stacks or batch rolls, typically containing up to 5,000 individual tickets – the upper limit being defined by the manageable drum size.

With the ability to handle up to 20,000 tickets per shift – across different formats and paper qualities – the RFE provides a flexible, scalable platform for local public transport, city marketing, tourism, and customer loyalty programs. Combined RFID encoding, scanning, and monochrome printing capabilities make it a powerful in-line solution for modern ticketing and card-based applications.

Key Facts

• Ticket dimensions (standard):

  • Length: min. ~40.0 mm

  • Width: ~30.0 mm to ~87.0 mm

  • Thickness: ~0.15 mm to ~0.6 mm

• Supported RFID tags:

  • Legic®

  • Mifare®

  • Icode®

  • Hitag®

  • EM

  • Custom tags via own reader integration

• Integrated scanner:

  • Common 1D barcodes

  • Common 2D codes

  • OCR (optical character recognition)

• Monochrome print module:

  • Print width: 12.7 mm (Inkjet) / 54 mm (DoD)

• Print resolution (DoD):

  • 600 × 600 dpi or 1,200 × 600 dpi

Applications

• Classical public transportation ticketing

• City marketing and tourism passes

• Customer loyalty and bonus card systems

• Employee ID and access cards

• Payback and reward systems

• Cinema and theatre tickets

• Packaging labels and stickers
