Key takeaways
- Combines Wi-Fi 6, BLE 5.4, and IEEE 802.15.4 radios on one chip.
- Powered by Arm Cortex-M33 up to 260 MHz with ample memory support.
- Provides advanced hardware security features for device protection.
- Rich peripheral interfaces including USB, Ethernet, and SPI.
- Optimized for smart home, industrial, and smart energy applications.
Talk to the product expert
Kyle Dando, Development Systems Application Engineer
Detailed product information

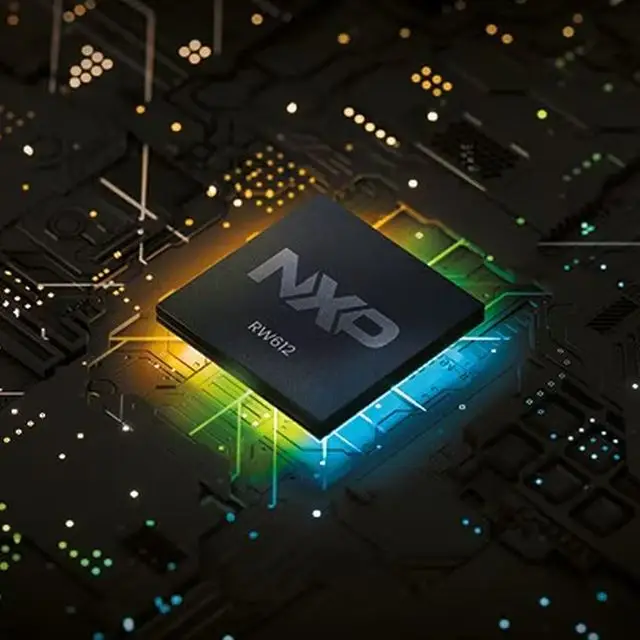

Tri-Radio Wireless MCU (Wi-Fi 6 + BLE 5.4 + IEEE 802.15.4)
The RW612 is a highly integrated wireless MCU with an Arm® Cortex®-M33 and three radios on one chip: Wi-Fi 6 (2.4/5 GHz), Bluetooth® Low Energy 5.4, and IEEE 802.15.4 (for Thread/Zigbee). It’s ideal for Matter devices as well as smart sensor/actuator nodes, hubs, and gateways. Hardware security, rich peripherals, and a compact power concept accelerate the development of energy-efficient connected products.
Key features
MCU & memory: Cortex-M33 up to 260 MHz, ample SRAM, XIP support for external Flash/PSRAM
Radios: Wi-Fi 6 (TWT, WPA3, etc.), BLE 5.4 (2M, Long Range), 802.15.4 for Thread/Zigbee
Security: Secure boot/debug/update, hardware crypto, PUF-based keys, production-grade protection
Interfaces: USB HS OTG, SDIO, Ethernet RMII, I²C/SPI/UART, I²S/PCM, ADC/DAC, PWM/Timers, LCD interface
Design friendly: single-supply concept, reference designs, compact package options
Typical applications
Smart home & building: Matter controller, Thread border router, smart locks, thermostats
Industrial & building automation: sensor/actuator nodes, controllers, gateways
Smart energy & appliances: connected meters, home appliances, sub-metering
Camera/audio peripherals: Wi-Fi cameras, doorbells, intercoms

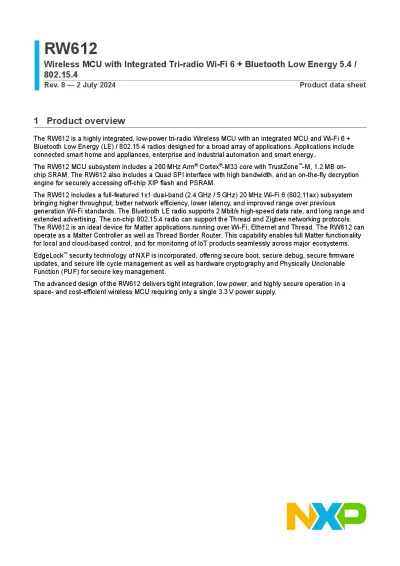

NXP RW612 Datasheet
PDF, 1.95 MB
Product Images
