Key takeaways
- Smallest HF/NFC transponder at 3.3 mm diameter by 2.6 mm height
- Press-fit design offers mechanical protection and easy installation
- Molded ferrite core ensures reliable operation on metal surfaces
- Rated IPX8 for water immersion and resistant to vibration and chemicals
- Supports secure data storage with NFC Forum Type 5 compatibility
Talk to the product expert
Matthias Höß, Manager R&D and Project Management
Detailed product information
Ultra-compact HF/NFC Transponder in Plug Form
The NeoTAG® Plug G/MG3326 is NEOSID’s smallest HF/NFC plug transponder to date, measuring just Ø 3.3 mm by 2.6 mm. Compared to previous plug tags, the tag area is reduced by ~40% and the volume by >50%, enabling reliable identification of very small parts.
As with all NEOSID plug transponders, the G/MG3326 is designed for harsh industrial environments and is available in versions for metal and non-metal mounting. The press-fit housing installs quickly and securely in a 3.0 mm bore, making it ideal for drill and milling inserts and other miniature components.
The result: smart tools ready for transparent, Industry 4.0 workflows.
What “Plug” means
“Plug” denotes the cylindrical, press-fit form factor that seats flush in a drilled recess. Benefits:
Mechanical protection with no protruding parts
Repeatable RF performance thanks to a defined mounting position
Fast installation directly into the part (tools, connectors, housings)
Why ferrite matters
Metal attenuates HF fields. NEOSID’s molded soft ferrite inside the tag guides the 13.56 MHz magnetic field, decouples the transponder from surrounding metal, and stabilizes coupling.
Result: NeoTAG plug variants outperform conventional HF tags on/in metal, often readable with NFC smartphones. For background and examples, see the Think WIoT article on RFID in metal: Neosid miniature RFID transponders for metal – robust thanks to ferrite core.
Key Facts
Miniaturised dimensions of 3.3 mm in diameter and 2.6 mm in height
Easy mounting process without special tools by press-in or punch-in
Readable by standard RFID readers with min. 200mW output power
Protection class IPX8: continuous immersion in water
Vibration resistant
High mechanical abrasion resistant
Resistant against a large number of chemical substances
User data memory: 896/1280/2112/2528 Bit depending on IC type
IC with password protection and encrypted protocol on request
Customer logo and color on request
NFC Forum Type 5 TAG
FDA compliant housing material on request
Applications
Maintenance and repair
Inventory management
Product tracking
Identification process management for small abjects like tools, devices, fixtures, equipment, machines, …
Digital manufacturing and tool management in INDUSTRY 4.0
Tool protection to prevent misuse
Downtime monitoring of processing tools
Maintenance management for tool revision
For non-metallic objects: NeoTAG® Plug G3326
For metallic objects: NeoTAG® Plug MG3326

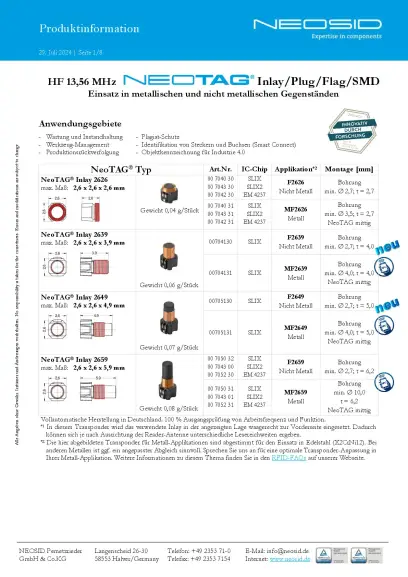

NeoTAG HF RFID/NFC Product Information
PDF, 2.36 MB
