Key takeaways
- Battery-free passive design extends service life.
- Multi-parameter sensing: temp, humidity, pressure.
- TELID® 281 provides 3-axis acceleration with FFT.
- Contactless ISO15693 read range up to 20 cm.
- NFC variants allow smartphone readout via apps.
Talk to the product expert
Jacek Nowak, Product Manager Electronics & Sensors
Detailed product information
RFID Sensor Transponders
Our TELID® 200 series passive sensor transponders offer a wide range of measurement parameters such as temperature, humidity, pressure, shock and vibration, tilt, light, etc., all in a small space. – in a very small space.
Thanks to their battery-free design, they have an extremely long service life and can be installed in and on numerous materials, even under asphalt or in concrete, to provide reliable and selective data.
Our acceleration sensor, the TELID® 281, uses AI-based data processing in the sensor and Fast Fourier Transformation to enable acceleration measurement in three axes (e.g. speed measurement).
The extensive microsensys portfolio also includes (sensor) transponders with NFC interface, which can be conveniently read out with your own smartphone or tablet and our apps.
Key Features
Wireless passive RFID accelerometer
3D vibration measurement 0…6400 Hz, up to ±16g, with integrated FFT and rotational speed sensor
Communication range: up to 20 cm
Medium-sized Hard-TAG, mountable on metal objects
Contactless data transmission according to ISO15693
Other passive sensors: temperature, (ground/air) humidity, pressure, light; also with NFC interface
Applications
Industrial condition monitoring
Maintenance
Logistics
Healthcare sector
Agriculture

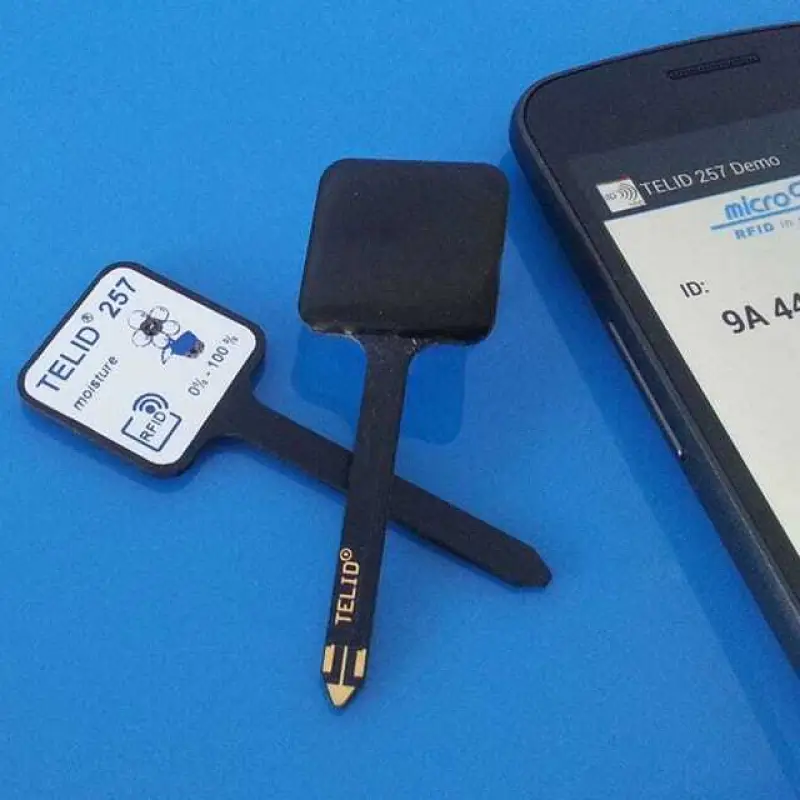

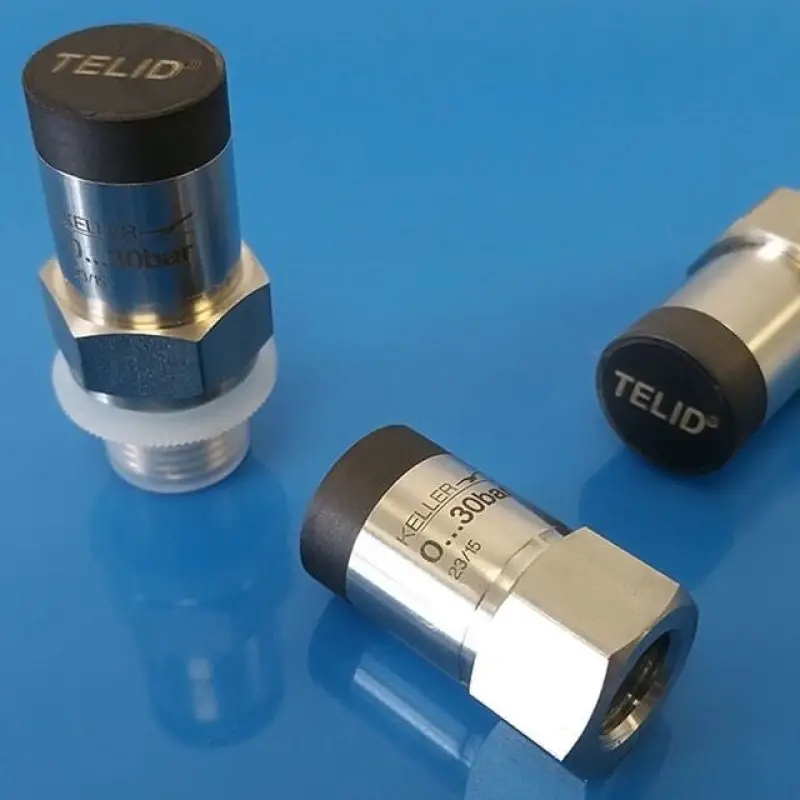

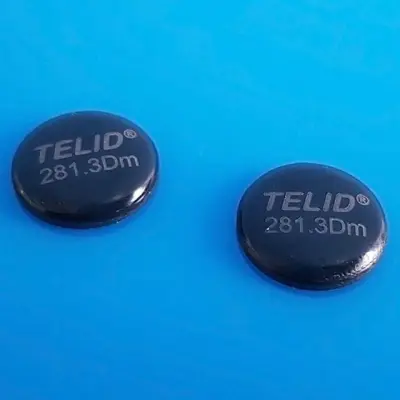

Product Images
