ID SCAN H3

UHF RFID and 1D/2D scanner for mobile data capture

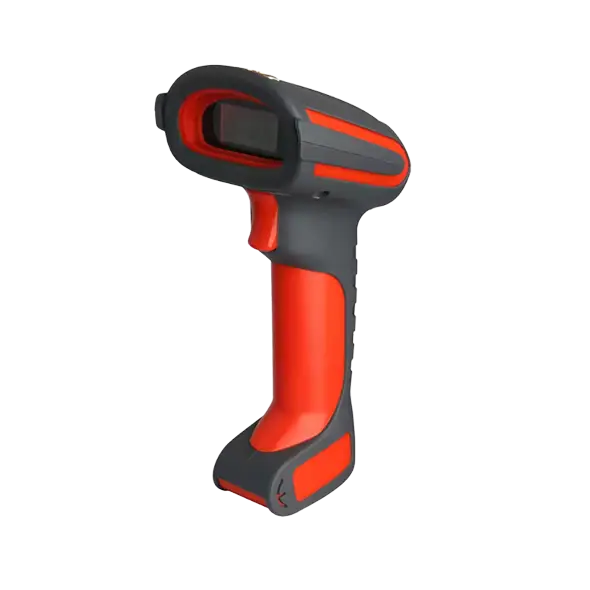

The ID SCAN H3 is a powerful handheld scanner that combines UHF RFID and 1D/2D barcodes in one compact device. It was developed for fast, reliable data capture in logistics, inventory, healthcare, and retail, and combines industrial robustness with flexible connectivity options.

The scanner reads UHF RFID tags (EPC C1 GEN2 / ISO 18000-63) with a range of up to 2 meters and captures 1D/2D barcodes in just 0.1 seconds thanks to a highly sensitive CMOS image sensor. The ID SCAN H3 can be integrated directly into existing workflows without drivers via USB, 2.4 GHz wireless, or Bluetooth.

The 2600 mAh battery enables up to 12 hours of continuous operation (barcode) or long standby times, while the robust design with IP54 protection and a 2.5 m drop height is designed for use in harsh everyday environments.

Key Features

• Dual technology in one device
  Combined UHF RFID scanner (EPC C1 GEN2 / ISO 18000-63) and 1D/2D barcode imager for maximum flexibility.

• Flexible operating modes
  Freely selectable between RFID-only, barcode-only, or hybrid mode (RFID + barcode) – depending on the application and process.

• High reading performance
  UHF read range up to 2 m, read speed of 0.1 s and 120 images per second for fast, error-free capture.

• Versatile connectivity
  USB, 2.4 GHz wireless, and Bluetooth for wireless transmission up to approx. 30 m and easy plug-and-play integration without drivers.

• Long-lasting battery & offline storage
  2600 mAh battery for up to 12 hours of barcode operation or up to 240 hours of standby, as well as integrated memory (16 MB) for offline data collection.

• Robust industrial design
  IP54 protection class, shockproof up to a drop height of 2.5 m, ABS + PC housing – ideal for warehouses, production, and outdoor use.

• Broad system compatibility

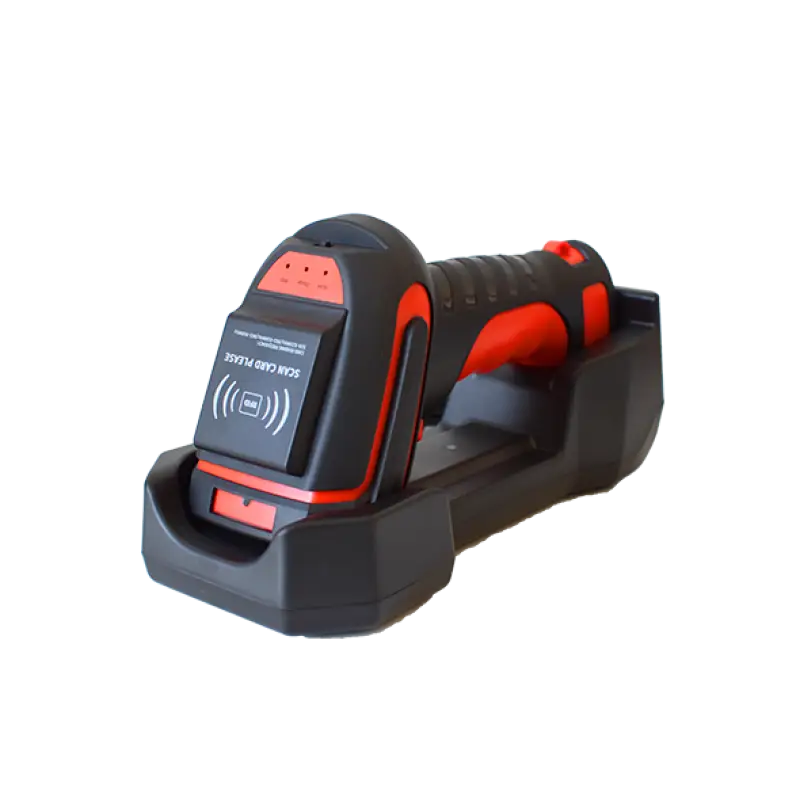

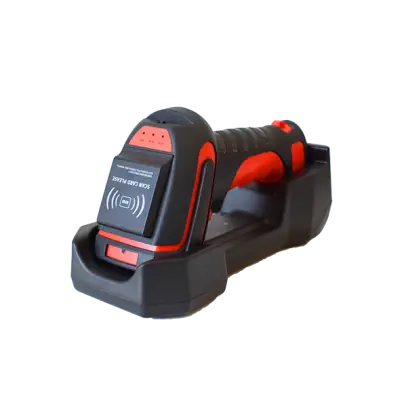

  Can be used with Windows, Linux, and Mac systems; optional charging station (cradle) for convenient handling and charging.

Typical applications

• Logistics & warehouse management
  Goods receipt/issue, order picking, container and pallet labeling, fast scanning directly at the shelf or gate.

• Inventory & asset tracking
  Recording and tracking of operating resources, tools, IT equipment, and medical devices.

• Healthcare
  Management of medical devices, consumables, and inventory in clinics, laboratories, and care facilities.

• Retail & POS
  Inventory control, price and label checking, backstore logistics, and mobile POS scenarios.
