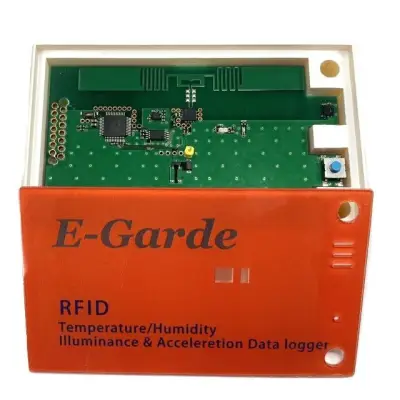

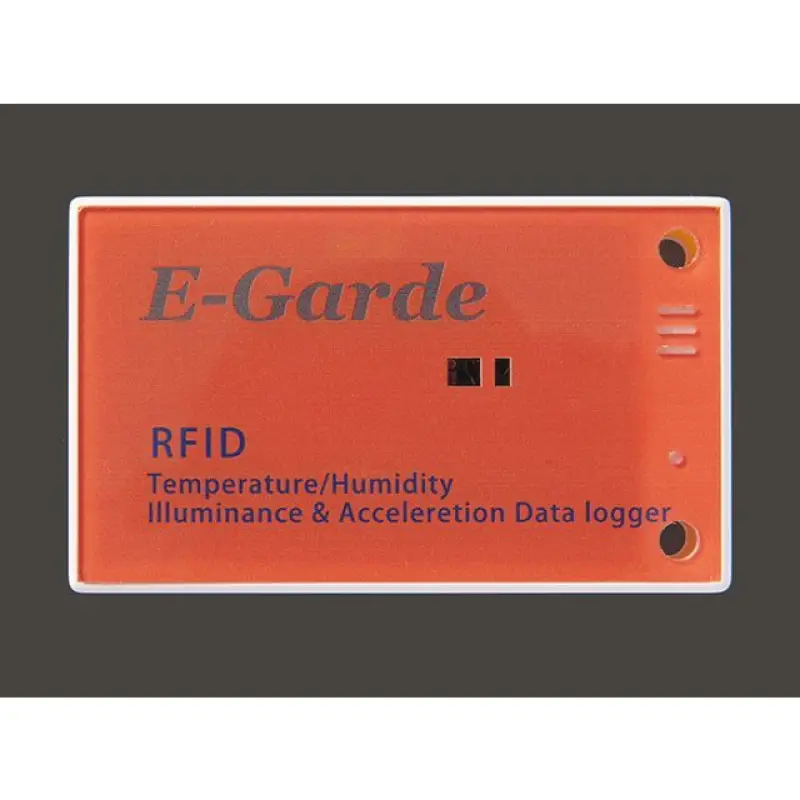

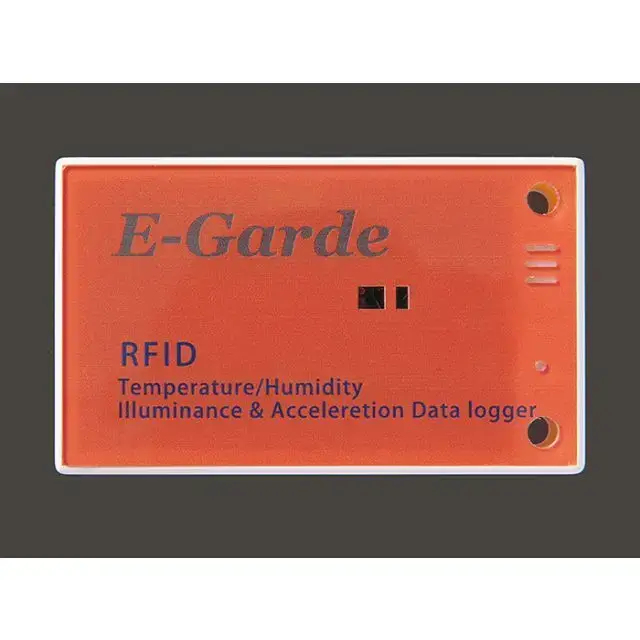

UHF RFID Data Logger

Streamlining quality control is an area of growing interest in various industries. E-Garde is looking to improve and enable a solution for this with RFID technology. This is where E-Garde’s UHF RFID Data Logger comes in. With four types of detecting capabilities including temperature, humidity, illuminance and shock in one single unit, users can capture all data simultaneously.

The UHF RFID Data Logger allows automated checkpoints to monitor, measure and record data throughout an entire process. Furthermore, this wireless monitoring device is designed to help users achieve their goals easily. The UHF RFID Data Logger is not only ideal for low-temperature logistics, but is also suitable for applications at a wide range of temperatures. Data can be transmitted up to five meters to a UHF RFID reader which is compliant with the current EPC Gen2 protocol.

Furthermore, the semi-passive device realizes enhanced performance at long distances. The transmitted data is useful to analyze in the case of an accident. Data can also be kept as evidence. The housing structure can be designed freely with durable materials according to the application. The UHF RFID Data Logger’s interface permits a very easy interaction with a UHF reader, allowing users to quickly check the sensor without requiring additional infrastructure.

Key Facts

• Dimensions: 98.5×59.0 ×20.5mm

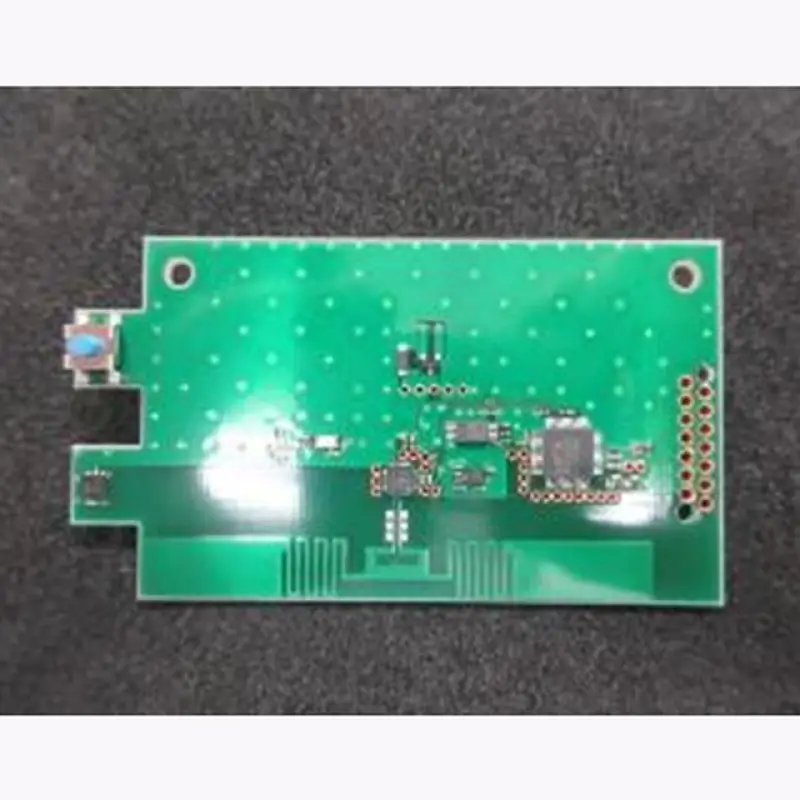

• Material: ABS (Housing), FR4 (Board), PC (Cover)

• Operating Temperature: -50℃ to 80℃

• Read Range: 4 to 6 m (1w UHF reader/depend on surroundings) / Semi-Passive

• Operating Frequency: UHF

• Recordable Data: Temperature, Humidity, Impact and shock, Illuminance

• Recordable Points:

  • Raw Data (Temperature and Humidity 2,500 points)

  • Alarm Data (Temperature, Humidity, Impact, and Illuminance 2,500 points)

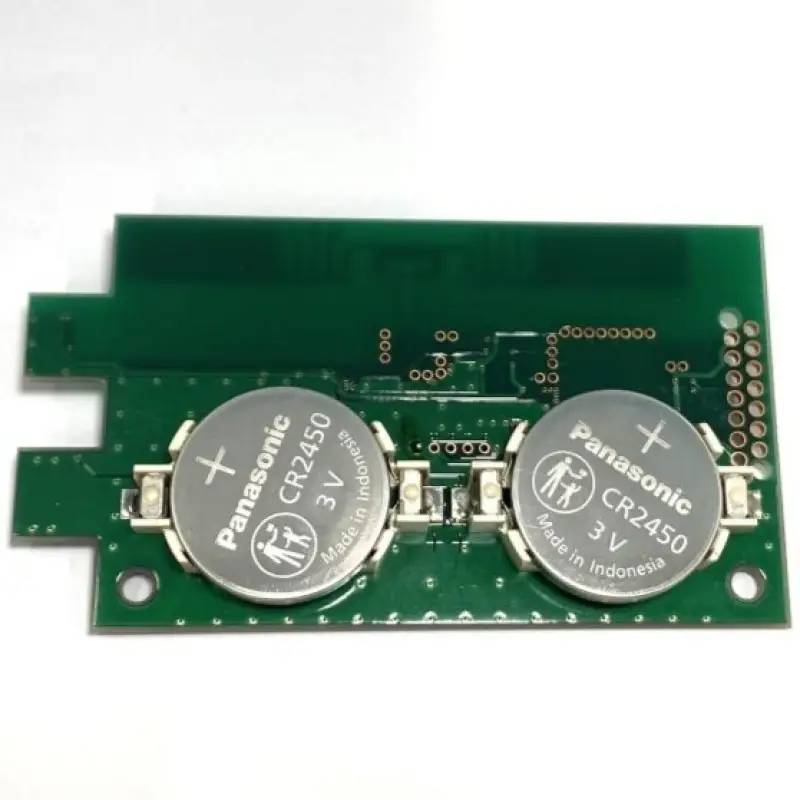

• Battery: CR2450 × 2pcs

• Battery Life: 1 year (Depending on settings)

• Features: Waterproof

Applications

• Logistics

• Warehouse Monitoring
