Balluff BIS VU-330-C0-S4 UHF Read/Write Head
Overview
The Balluff BIS VU-330-C0-S4 is a high-performance UHF RFID read/write head designed for indoor use. It operates in the 860...930 MHz frequency range and supports EPCglobal Class 1 Gen 2 and ISO 18000-6C standards. With a planar antenna and circular polarization, this device is suitable for applications requiring reliable multi-tag reading.
Key Features
Planar antenna type with circular polarization
Multi-tag capable
LED indicators for status, RF activity, power, and tag presence
Robust stainless steel housing and PBT sensing surface
IP68 and IP69K rated with connector for extreme environmental conditions
RS485 interface for communication
Applications
Ideal for industrial RFID applications where reliable UHF tag reading is essential, ensuring robust operation under shock, vibration, and free fall conditions.
Compliance
Certified with CE, UKCA, WEEE, Ecolab, cULus for European and UK markets.
- Frequency Range
- 860...930 MHz
- Antenna Type
- Planar
- Polarization
- Circular
- Output Power Adjustable
- -9 dBm to +16 dBm (0.13 mW to 40 mW)
- Operating Voltage
- 24 V DC
- Current Consumption Max. at 24 V DC
- 200 mA
- Interface
- RS485
- Ingress Protection Rating
- IP68, IP69K (with connector)
- Operating Temperature
- 0…70 °C
- Housing Material
- 1.4404 stainless steel

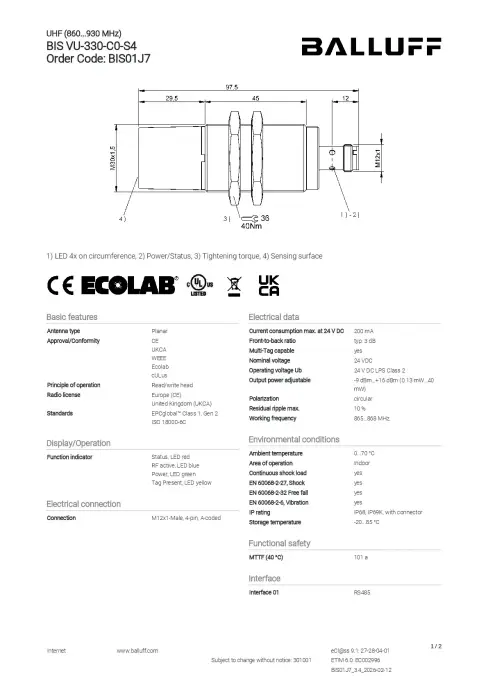

BIS VU-330-C0-S4 Datasheet
PDF, 103.26 KB
