UHF RFID for Automatic Implement Identification in Agriculture
UHF RFID can automatically identify agricultural implements and link operational data to the correct machine in use. For tractors, mounted implements and towed equipment such as round balers, this creates a foundation for more transparent machine processes and more reliable digital documentation.
With the MPR Series UHF Reader IA, featuring an integrated antenna, iDTRONIC offers a compact RFID solution for targeted short-range identification near couplings, drawbars and machine connections. Once an RFID-equipped implement is connected to a tractor, its unique identifier can be detected automatically at distances of up to 30 cm.
The captured information is transmitted directly to the machine control system via CANopen. This allows operating data, machine parameters, and application information to be automatically linked to the correct implement.
Why Automatic Implement Recognition Is Important in Agriculture
Modern agricultural operations often work with multiple tractors, rotating implements, different drivers, and various work sites. Without automatic identification, it is not always possible to clearly determine which implement was connected to which tractor at any given time.
Automatic RFID identification reduces this uncertainty. A transponder on the implement contains a unique identifier that is recognized by the RFID reader within the defined reading range. This makes each implement an identifiable component of the overall system.
This helps farms, contracting companies, and machinery manufacturers avoid misassignments, improve digital documentation processes, and make more reliable use of machine information.
Round Baler Use Case: RFID Identification at the Coupling Point
One practical RFID use case in agriculture is the automatic identification of round balers. As balers may be used with different tractors across several fields, operators and work locations, clearly identifying the connected machine becomes especially important.
The MPR Series UHF Reader IA can be installed in a protected position, for example on the drawbar near the coupling point or on the front frame area of a round baler. Once the baler is connected, the RFID-enabled identification process can take place automatically.
The collected RFID information can then be transferred via CANopen to a compatible machine control system or higher-level system. This allows the connected implement ID to be linked with operational data, machine parameters and documentation processes.
UHF RFID Reader for Agriculture, Attachments, and Mobile Machinery
The iDTRONIC MPR Series UHF Reader IA is designed for demanding industrial identification tasks and can also be used in mobile machinery and agricultural applications. Its compact form factor makes it suitable for defined short-range identification zones around drawbars, couplings and machine connections.
The reader supports UHF RFID according to EPC Gen2 and ISO 18000-6C in the ETSI frequency range from 865 to 868 MHz. Depending on the transponder, installation setup and environmental conditions, reading distances of up to 30 cm are possible.
With an integrated antenna, M12 connector, status LED and IP67 protection rating, the reader is designed for demanding operating environments. Its compact housing, measuring 81 × 53 × 24 mm, supports installation on drawbars, machine frames or protected equipment housings.
CANopen and RFID: Direct Data Transmission to the Machine Control System
A key component of the application is data transmission via CANopen. This standardized communication protocol, based on the CAN bus, is frequently used in mobile machinery, automation systems, and industrial control environments.

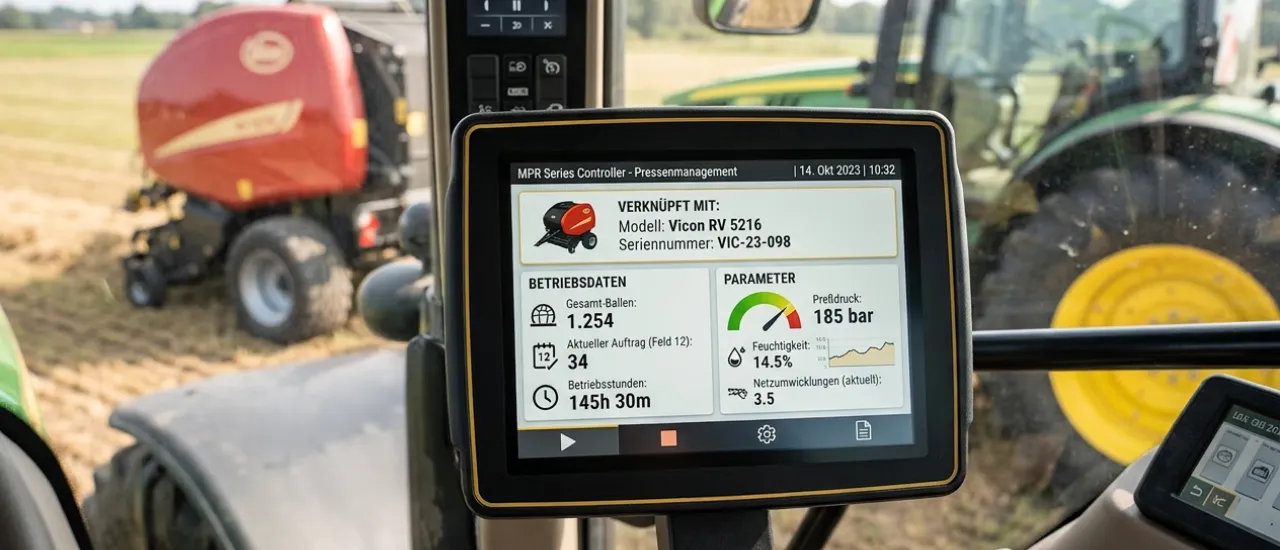

RFID information is transmitted directly to the machine control system via CANopen. This transforms simple identification into usable process information. The control system can automatically detect which implement is connected, correctly store operating data, and support digital documentation processes.
Greater Transparency in Agricultural Machinery Fleets
RFID-based identification of attachments supports more precise data collection and improves transparency in agricultural machinery fleets. Implements can be automatically recognized, operational data correctly assigned, and digital processes documented more reliably.
For agricultural machinery manufacturers, contract operators, and providers of digital agricultural technology, this means greater automation, better data quality, and a modern interface for connected agricultural processes.
Want to explore how RFID can automatically identify agricultural implements and improve machine data quality? Contact iDTRONIC to discuss your application with the RFID experts.
Further technical information about the iDTRONIC MPR Series UHF Reader IA is available at: https://idtronic.de/rfid-reader/uhf-reader-ia
