Key takeaways
- Integrated EPC Gen2 V2.1 RAIN RFID encoding
- High-quality prints with optional 300 dpi resolution
- Supports Ethernet, USB, Wi-Fi, and Bluetooth
- Includes Zebra DNA for security and management
Talk to the product expert
Eiko Gramlich, Senior Account Manager RFID
Detailed product information
First-class features, maximum performance, and integrated UHF/RFID encoding
The Zebra ZD621R (4 inches, up to approx. 104 mm) and ZD611R (2 inches, up to approx. 56 mm) are compact, powerful thermal printers with RAIN/UHF RFID encoding. Both models offer robust hardware, intuitive operation via a 4.3" color touchscreen, and enhanced security via the Zebra DNA software suite (including PrintSecure). Ideal for retail, food & beverage, healthcare, and hospitality.
Key benefits
Integrated RFID encoding (Zebra RE40 module) for EPC Gen2 V2.1 / ISO/IEC 18000-63 / RAIN RFID
High print quality: Media dancer arm and optional 300 dpi for crisp, clear prints
Flexible connectivity: Ethernet, USB, optional Wi-Fi (802.11ac/ax) and Bluetooth (BLE)
Easy to use: 4.3-inch color LCD touch screen with intuitive wizards and color-coded prompts
Secure and manageable: Zebra DNA (Link-OS), PrintSecure, remote management with Printer Profile Manager
Features
Supports thermal transfer and direct thermal printing
Adaptive Encoding Technology for simplified RFID calibration
Printer languages: ZPL II, EPL; firmware features: ZBI, PDF Direct, XML
Optional, field-upgradeable media handling options (peeler/cutter) and battery for mobile use
Applications
Retail: Merchandise/clothing tags, store labeling
Food & beverage: Expiration date tracking, recall management
Healthcare: Patient wristbands, sample labeling, medical device tracking
Hospitality: RFID wristbands
Further information: www.zebra.com/zd600
- printing method
- Thermal transfer or direct thermal printing
- resolution
- 203 dpi (standard); 300 dpi (optional)
- Maximum print width
- ZD621R: 104 mm (203 dpi) / 108 mm (300 dpi); ZD611R: 56 mm (203 dpi) / 54 mm (300 dpi)
- Maximum print speed
- 203 mm/s (at 203 dpi); 152 mm/s (at 300 dpi)
- working memory
- 512 MB flash memory; 256 MB SDRAM
- RFID support
- EPC Gen2 V2.1; ISO/IEC 18000-63; RAIN RFID; Zebra RE40 reader/encoder module
- connectivity
- Ethernet, USB 2.0, USB host; optional dual wireless module 802.11ac/ax (Wi-Fi) and Bluetooth 4.1/5.3; serial interface optional (ZD611R)
- display
- 4.3-inch LCD color touchscreen (480 x 272)
- media width
- ZD621R: 0.6 in to 4.6 in; ZD611R: 0.6 in to 2.4 in
- power supply
- Automatic detection 100–240 V AC, 50–60 Hz; optional rechargeable battery 2750 mAh

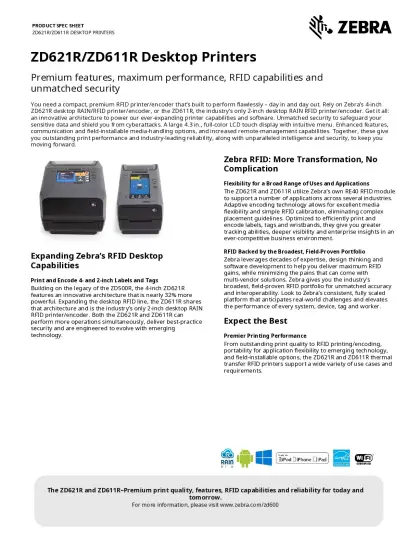

ZD621R/ZD611R Datasheet
PDF, 386.60 KB
