Key takeaways
- AI engine boosts performance up to 300% over previous models
- Supports up to 12 GB RAM and 2 TB expandable storage
- 6-inch AMOLED display with 1500 NITS brightness and Gorilla Glass
- Military-grade ruggedness with IP68/IP65 water and dust resistance
Talk to the product expert
Alexander Honigmann, Sales Director T&L/Manufacturing/Other Markets
Detailed product information
Ultra-rugged mobile computing for the AI-powered frontline
The Zebra TC701 is an ultra-rugged mobile computer engineered for the AI-powered frontline workforce. It delivers exceptional processing power, memory, and advanced wireless connectivity to support high-performance AI applications in real-time. Designed for maximum durability, it withstands harsh environments with military-grade ruggedness and offers an advanced 6-inch AMOLED display engineered for enterprise users.
Equipped with multiple next-generation data capture options including advanced scanning, high-resolution cameras, integrated RFID, and AI-driven software, the TC701 redefines productivity and business intelligence at the edge.
Key Features
Powerful AI-Enabled Processing: Qualcomm Dragonwing Q-6690 CPU up to 2.9 GHz with dedicated AI engine providing up to 300% performance boost over legacy TC7 devices.
Class-Leading Memory: Options for up to 12 GB RAM and 256 GB UFS 3.1 flash storage plus support for up to 2 TB MicroSD card.
Vibrant Display: 6-inch AMOLED Full HD+ (2160x1080) with up to 1500 NITS peak brightness, Gorilla Glass Victus, and variable refresh rate for improved power efficiency.
Advanced Wireless Networking: 5G 3rd Gen Release 17, Wi-Fi 7, Bluetooth 6 with extended range and reduced power.
Highly Rugged: Military-grade drop specifications up to 12 ft, IP68/IP65 sealing, and thermal shock tested for diverse environments.
Ultimate Data Capture: Multiple scanner options (SR500, SR560, AC670), 50 MP auto-focus rear camera, optional 13 MP ultra-wide angle, time-of-flight 3D sensor, and integrated short-range UHF RFID.
AI-Powered Imaging: Enterprise AI Camera app with lens cleaning prompt, image retake, facial blur, and timestamp watermark features.
Comprehensive Security: Android Strongbox with Secure Element IC, FIPS and Common Criteria certifications, device access via facial recognition, and device tracking via BLE beacon.
Enhanced Audio: AI-enhanced noise cancellation, smart amplifiers for loud and clear voice communication.
Long-Lasting Power: Hot swap capable Li-Ion batteries (5000 mAh and 7240 mAh), fast charging to 70% in 45 min.
Use Cases
Transportation & Logistics: Proof of delivery, location services, route optimization.
Field Service: Remote expert communication, mobile POS, parts inventory.
Retail: Price checks, order fulfillment, inventory management.
Warehouse & Manufacturing: Picking, shipping, reverse logistics.
For detailed info, visit www.zebra.com/tc701
- Dimensions
- 6.5 x 3.07 x 0.61 inches (165.0 x 77.9 x 15.5 mm)
- Weight
- 10.02 oz. (284 g) with 5000 mAh battery; 11.08 oz. (314 g) with 7240 mAh battery
- Display
- 6.0 inch AMOLED, 2160x1080 Full HD+; up to 1500 NITS peak brightness; Gorilla Glass Victus
- Processor
- Qualcomm Dragonwing Q-6690 up to 2.9 GHz with dedicated AI engine
- Memory
- 8 GB LPDDR5 RAM/128 GB UFS 3.1 Flash or 12 GB LPDDR5 RAM/256 GB UFS 3.1 Flash
- Wireless Connectivity
- 5G 3rd Gen Release 17, Wi-Fi 7, Bluetooth 6.0
- Data Capture
- SR500, SR560, AC670 scanners; 50 MP rear camera; optional 13 MP ultra-wide camera; integrated short-range UHF RFID
- Battery
- Rechargeable Li-Ion PowerPrecision+ (5000 mAh standard, 7240 mAh extended); Hot Swap capable; fast charging
- Ruggedness
- IP68 and IP65 rated; exceeds MIL-STD-810H drop specs up to 12 ft; 3,500 tumbles at 3.3 ft
- Operating System
- Android (version depends on SKU, see Zebra website)

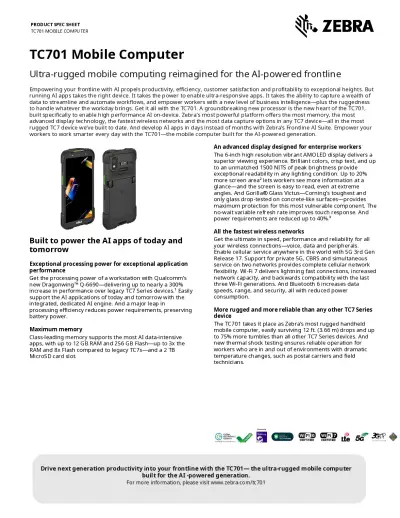

TC701 Mobile Computer Datasheet
PDF, 416.46 KB
Product Images
