Leuze RSL 200 Safety Laser Scanner

Maximum safety in minimum space built for compact AGVs, AMRs and machines

The RSL 200 safety laser scanner family is engineered for applications where space is limited. With a compact design measuring 80 mm in height and a footprint of 80 × 86 mm, the scanners provide a 3.0 m protective field range and a 275° scanning angle. This makes them ideal for safeguarding AGVs and AMRs, as well as for area guarding and restart protection on compact machines.

For flexible operation in changing environments, the RSL 200 supports switchable field sets that adapt to speed, direction of travel, load and surrounding conditions. Depending on the model, up to 32 protective field sets are available. These can be optimized using sets that combine two warning fields and one protective field, enabling fine adjustment to specific use cases.

Your benefits

• Low space requirements with only 80 × 80 × 86 mm for compact vehicle integration

• Up to 32 switchable field sets for dynamic adaptation to driving situation and load

• Measurement value output on selected models for AGV and AMR navigation

• Robust performance against shocks, vibrations, dirt and airborne particles

• Easy integration via standard M12 connectors with rotating connections

• Fast diagnostics using the mobile app via Bluetooth

Variant overview

RSL 210 and RSL 220

• Interfaces: I/O, Bluetooth, USB

• 3.0 m range, 275° scanning angle

• Up to 8 configurations

RSL 230 and RSL 235

• Interfaces: I/O, Ethernet TCP/IP, Bluetooth, USB

• 3.0 m range, 275° scanning angle

• Up to 32 configurations

• Measurement value output for AGV and AMR navigation

Typical applications

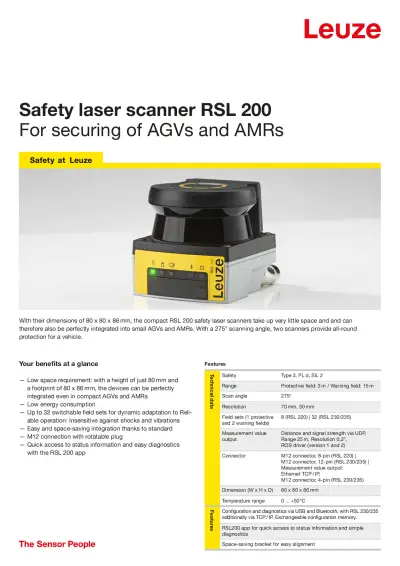

• Safeguarding compact AGVs and AMRs in multiple directions of travel

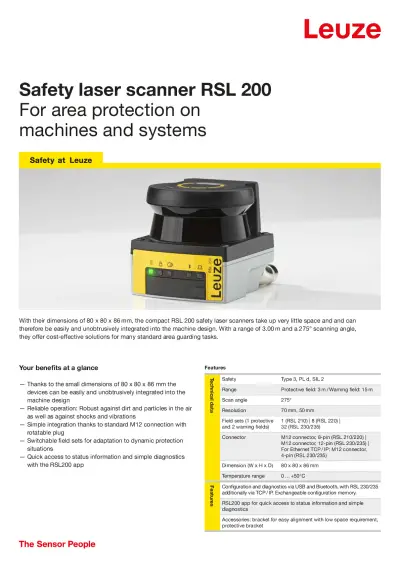

• Area guarding and presence detection for compact machines and systems

• Restart protection and monitoring of hidden areas using configurable protective fields
