Key takeaways
- Reads 1D and 2D codes using a 1.3 MP CMOS global shutter imager.
- Operates at up to 120 frames per second for rapid applications.
- Supports direct part marking (DPM) for traceability in electronics.
- Robust IP64 aluminum housing ensures durability in industrial settings.
- Easy setup with integrated trigger/teach buttons without a PC.
Talk to the product expert
Oliver Pütz-Gerbig, Senior Market and Technology Expert Auto-ID
Detailed product information

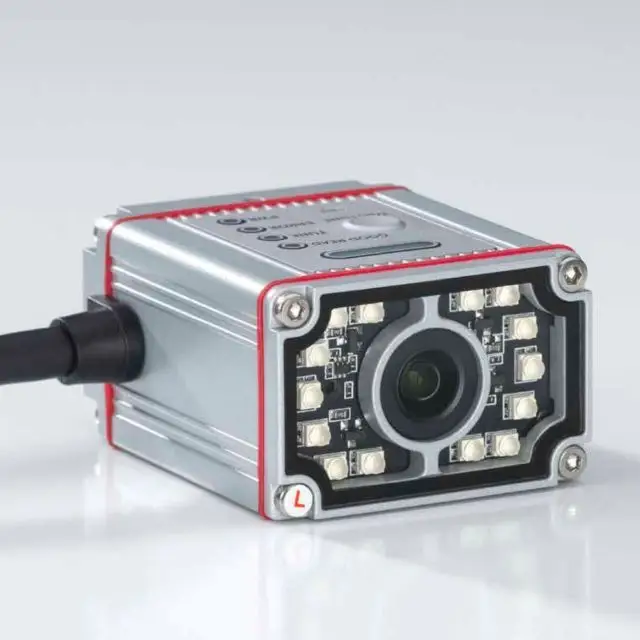

Compact 1D/2D code reader for industrial identification
The DCR 100i is a compact code reader for reliable detection of 1D and 2D codes in industrial processes. It combines powerful imager technology with easy commissioning: integrated trigger/teach buttons allow the device to be set up quickly – automatically, without a PC, if desired.
With its robust housing and practical interfaces, the DCR 100i is particularly suitable for production and logistics environments where fast, stable code recognition is essential.
Product highlights
1.3 MP CMOS imager (global shutter)
Up to 120 fps for fast applications
Manually adjustable focus with 4 focus ranges (HHD/HD/SR/LR)
Reading range approx. 40–550 mm (depending on focus/setup)
Supports DPM (direct part marking)
Intuitive operation: Trigger/teach buttons + auto setup without PC
Integrated red LED illumination, laser class 1 (red)
Interfaces: Ethernet (TCP/IP, Modbus TCP) and RS 232
Robust aluminum housing, protection class IP64
Very compact design: 44 × 53 × 29 mm
Areas of application
Packaging & intralogistics: Reading of 1D/2D codes on cartons, labels, and shipping labels on conveyor lines
Electronics manufacturing: Capturing DPM codes for traceability on components and circuit boards
Automation & assembly: Identification of parts and assemblies in process steps with varying distances
Multi-code scenarios: Applications in which multiple codes per object need to be read quickly and reliably
