RFLINE M30 UHF RFID Reader

Compact UHF RFID Reader for Short-Range Industrial Automation

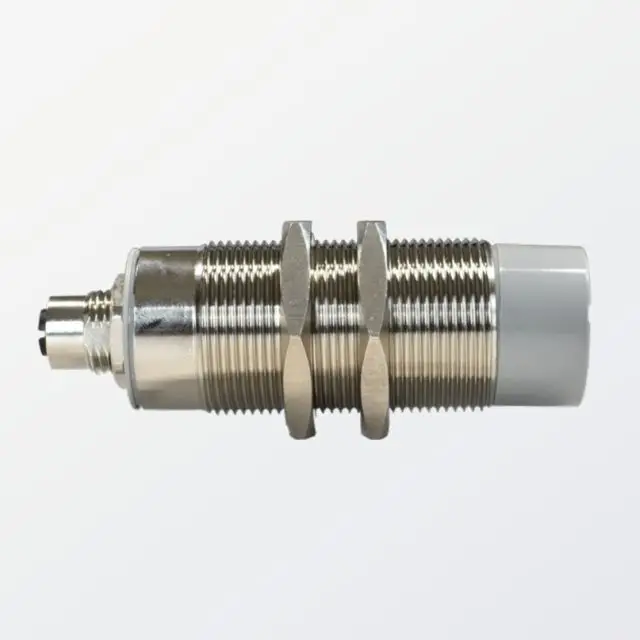

The RFLINE M30 is a fixed and compact all-in-one UHF RFID reader designed for industrial automation processes. It features a power output of up to 30 dBm (250 mW), adjustable in 1 dB steps from 0 to 30 dBm. Equipped with an integrated circular antenna with a gain of -8 dBi, the RFline UHF M30 can achieve reading distances up to 50 centimeters within industrial environments.

Typically used in industrial automation for production lines and conveyor belt systems, it is also ideal for identifying tool attachments on construction, municipal, and farming vehicles. The device offers flexible and fast integration thanks to its compact cylindrical housing and standardized M12 connectors.

The RFLINE UHF M30 supports a RS232 interface and a power supply range of 10 to 24 V. It comes with iDTRONIC's well-known M30 SDK featuring demo and setup tools compatible with Windows operating systems from XP to Windows 10.

Applications

• Industrial Automation

• Material Handling

• Tracking & Tracing

• Attachment Identification

• Production Control

Features

• 10 to 24 V power supply

• Up to 50 cm reading distance

• Compact cylindrical metal housing

• Protection class IP67

• M12 connector

• UHF RFID (EPC C1 GEN2 / ISO18000-63)

Available Interfaces

• RS232

Supported Standards / Tags

• ISO 18000-63 (EPC Class 1 Generation 2)

• Compatible with Alien Higgs 2/3/4, Impinj Monza, NXP UCODE, and others
