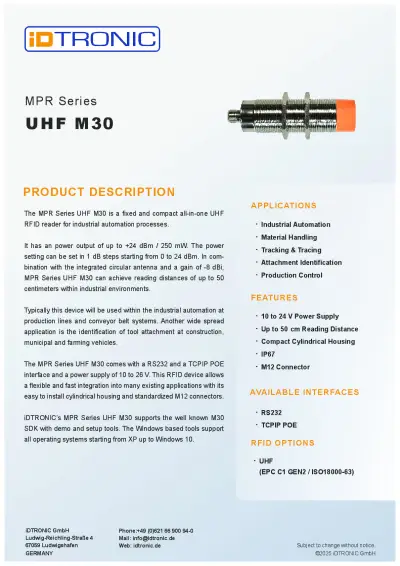

MPR Series UHF M30 Reader

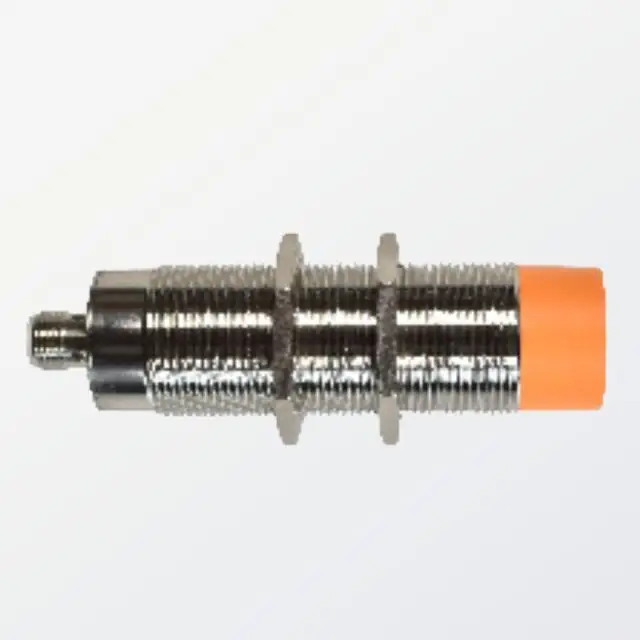

The MPR Series UHF M30 is a fixed, compact all-in-one UHF RFID reader designed for industrial automation processes. It features a power output of up to +24 dBm (250 mW) adjustable in 1 dB increments from 0 to 24 dBm. With an integrated circular antenna having a gain of -8 dBi, it can achieve reading distances up to 50 cm in industrial environments.

Typically used in industrial automation like production lines and conveyor belt systems, it is also widely applied for tool attachment identification on construction, municipal, and farming vehicles.

The device supports flexible and rapid integration into existing applications with its easy-to-install cylindrical metal housing and standardized 5-pin M12 A-coded male connectors. Power supply range is 10 to 26 V.

The MPR Series UHF M30 includes RS232 and TCPIP POE communication interfaces and supports the well-known M30 SDK with demo and setup tools compatible with Windows operating systems from XP to Windows 11.

Applications

• Industrial Automation

• Material Handling

• Tracking & Tracing

• Attachment Identification

• Production Control

Features

• 10 to 24 V Power Supply

• Up to 50 cm Reading Distance

• Compact Cylindrical Housing

• IP67 Protection Class

• M12 Connector

Supported Standards

• EPC C1 GEN2 / ISO18000-63

Interfaces

• RS232

• TCPIP POE
