Key takeaways
- Compact HF RFID reader with IP67 protection
- Supports ISO 14443 A/B and ISO 15693 standards
- Reading distance up to 6 cm under industrial use
- Interfaces include RS232 and TCPIP POE
Talk to the product expert
Benjamin Pfeiffer, Sales RFID & IoT
Detailed product information

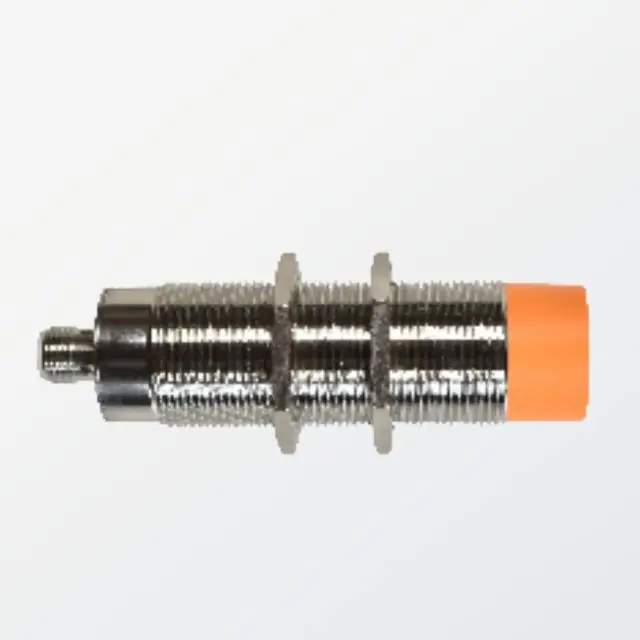

The MPR Series HF M30 by iDTRONIC is a fixed, compact all-in-one HF RFID reader designed specifically for industrial automation processes. Equipped with an integrated circular antenna and a gain of -8 dBi, it can achieve reading distances up to 6 cm under typical industrial conditions.
Its rugged cylindrical metal housing with IP67 protection class makes it ideal for demanding environments.
Applications
Industrial Automation
Material Handling
Tracking & Tracing
Attachment Identification
Production Control
Features
Power Supply: 10 to 24 V
Reading Distance: Up to 6 cm
Compact Cylindrical Housing (M30 x 2 x 91 mm)
IP67 Rated for Dust and Water Protection
Standardized A-coded Male M12 Connector
Integrated Circular Antenna with -8 dBic Gain
Interfaces
RS232
TCPIP POE
Supported RFID Standards
HF: ISO 14443 A/B and ISO 15693
Software Support
The device supports the well-known M30 SDK including demo and setup tools compatible with Windows operating systems from XP up to Windows 10 and 11.
Note: Actual reading distance depends on tag, antenna, and environmental conditions.
- Power Supply
- 10 - 24 Vdc
- Power Consumption
- 4 W
- Operating Frequency
- HF: 13.56 MHz
- Antenna
- Integrated circular antenna, -8 dBic gain
- Operating Distance
- Up to 6 cm
- Communication Interface
- RS232, TCPIP POE
- Connector Type
- A-coded male connector M12
- Housing Material
- Metal
- Protection Class
- IP67
- Operating Temperature
- -20 to +55 °C

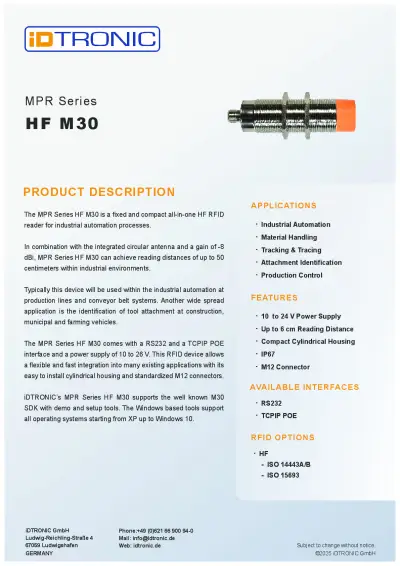

IDtronic MPRSeries-HF-M30-Reader.pdf
PDF, 225.23 KB
Product Images
