Key takeaways
- Ultra-slim design for concealed installations.
- Modular lengths enable flexible integration.
- High UHF gain supports extended read range.
- Low mounting depth saves installation space.
- On-metal and off-metal mounting options.
Talk to the product expert
Miroslav Jaksik, Managing Director, FlexiRay
Detailed product information
SF5 Antenna Series for Discreet Indoor Portals, Racks and Shelves
The Ultra Thin UHF RFID SF5 antenna series stands out with its exceptional read range, slim profile, and aesthetic, unobtrusive design. With high antenna gain and a modular, ultra-thin form factor, SF5 antennas are the ideal solution for indoor use, RFID gates, portals, smart racks, cabinets, and shelves.
Key Features
Sleek and aesthetic design for discreet indoor RFID installations

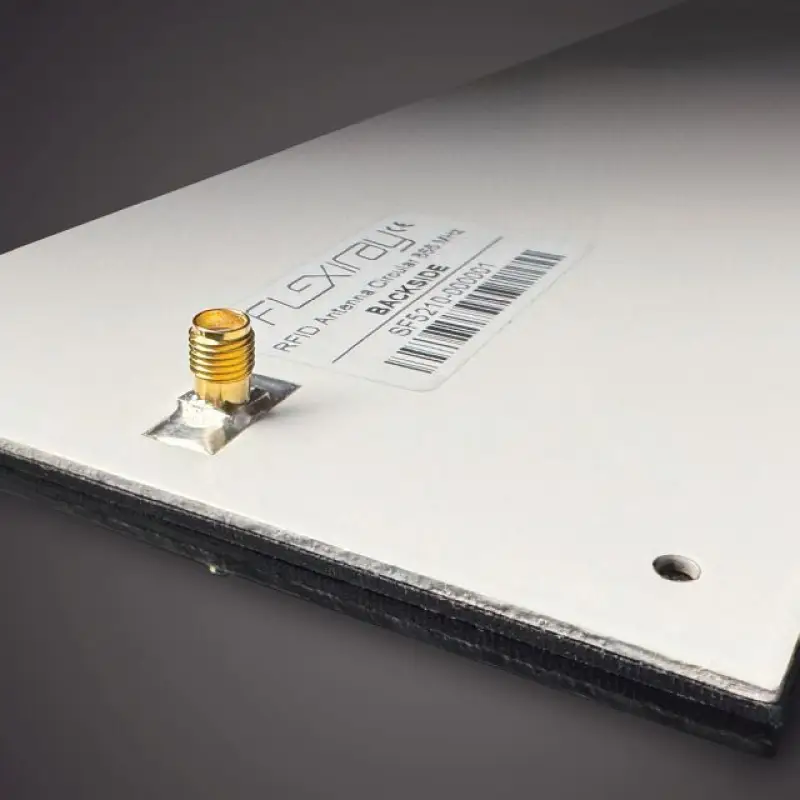

Ultra-slim profile, ideal for smart racks and shelves
Modular antenna lengths for flexible integration
Low mounting depth for space-saving applications
Supports completely invisible door-frame installation
On-metal and off-metal mounting options available
Typical applications
Access control, asset tracking, and retail environments
RFID portals and reading zones at entrances, doors, and corridors
Smart racks, display cabinets, and RFID-enabled shelves
Point-of-sale, desktop, or embedded RFID systems
Suitable for invisible or integrated RFID solutions in furniture and architecture
- Frequency Range
- 866-868 MHz (ETSI), 912-922 MHz (FCC)
- Polarization
- Circular RHCP
- VSWR
- < 1,5 typical
- Impedance
- 50 Ohms
- Connector
- SMA female or Pigtail SMA
- Gain – ETSI
- from 2dBi/5dBic (SF5100) to 7,8dBi/10,8dBic (SF5400)
- Gain – FCC
- from 2,7dBi/5,7dBic (SF5100) to 7,8dBi/10,8dBic (SF5400)

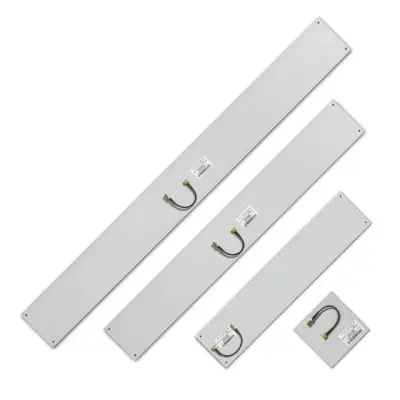

Product Images
