Key takeaways
- Batteryless RAIN RFID sensor IC for scalable IoT use
- Supports capacitive sensing with flexible sensor integration
- Compliant with ISO/IEC 18000-63 and EPC Gen2v2 standards
- Built-in tamper evidence function for secure labeling
- Compatible with existing antenna designs for ease of use
Talk to the product expert
Pierre Muller, RFID Business Unit Manager
Detailed product information
Batteryless RAIN RFID Sensor IC for Mass IoT Deployment
The em|aura-sense is a RAIN RFID sensor IC that enables large-scale rollouts of cost-effective, batteryless sensors for ubiquitous IoT applications. It combines long-range RAIN RFID (UHF) technology with capacitive sensing, allowing both identification and sensing through a single, standard-compliant tag.
The capacitive sensor element is external to the chip and can be implemented flexibly – either integrated directly into the inlay (e.g. as a printed or etched structure) or mounted as a separate SMD component. This makes em|aura-sense ideal for customized sensor designs tailored to specific materials, environments or form factors.
em|aura-sense supports several data acquisition modes, fully compliant with ISO/IEC 18000-63 and EPC Gen2v2 snapshot sensor definitions. Sensor data can be retrieved directly during inventory for highly efficient system operation, or – on reader request – stored in the IC’s user memory for later read-out and logging.
A built-in tamper evidence function can be used either together with the capacitive sensor or as a simple 1-bit resistive sensor, enabling low-cost tamper-evident labels and sealed packaging concepts.
Key Features
Standard RAIN RFID protocol (ISO/IEC 18000-63) – no custom reader commands required
Snapshot Sensor technology – enables sensing without changes to existing RAIN RFID infrastructure
Capacitive sensing with 7-bit resolution and ≈17 pF effective range plus offset calibration
Measurement values can be stored inside the IC (user memory up to 2 kbit)
Excellent RF performance: –19.5 dBm read sensitivity / –18 dBm sensing sensitivity
Tamper function usable as a 1-bit resistive sensor for seal or label tamper evidence
UHF front-end compatible with em|echo-V and em|aura-light – antenna designs can be reused
Typical Applications
Smart manufacturing and factory automation
Industry 4.0 asset and condition monitoring
Industrial sensing on non-powered or hard-to-access assets
Quick Service Restaurants (QSR) – e.g. packaging, freshness or process monitoring
Explore how em|aura-sense fits into your design – request samples and speak with our experts today.

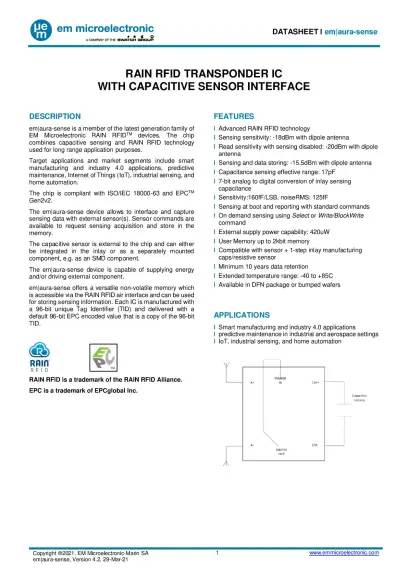

em|aura-sense datasheet
PDF, 2.03 MB
Product Images
