Key takeaways
- Connects up to four ARE i9 RFID readers concurrently
- Supports EtherCAT®, EtherNet/IP™, Profinet®, Serial interfaces
- Compact design with aluminum and PC materials
- Operates on a 24V DC power supply
Talk to the product expert
Simon Arch, Chief Sales Officer (CSO) & Head of Marketing
Detailed product information
The ACM 9 communication module connects the ARE i9 readers with the latest interfaces. At the same time, it can be used as a multiplexer, as up to 4 readers can be connected. This can be done in a mix, so LF and HF components can be combined.
Key Facts
Reading system: ARE i9
Interface: EtherCAT®, EtherNet/IP™, Profinet®, Serial
Power supply: 24V DC
Material: PC | Aluminium
Weight: Approx. 250 g
Length: 111 mm
Width: 99 mm
Height: 27 mm (max. 37,5 mm including M12 ports)
Applications:
Industrial IoT
Logistics

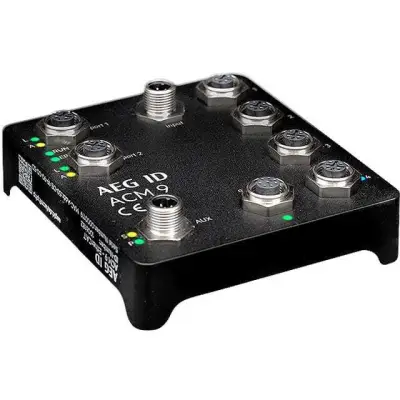

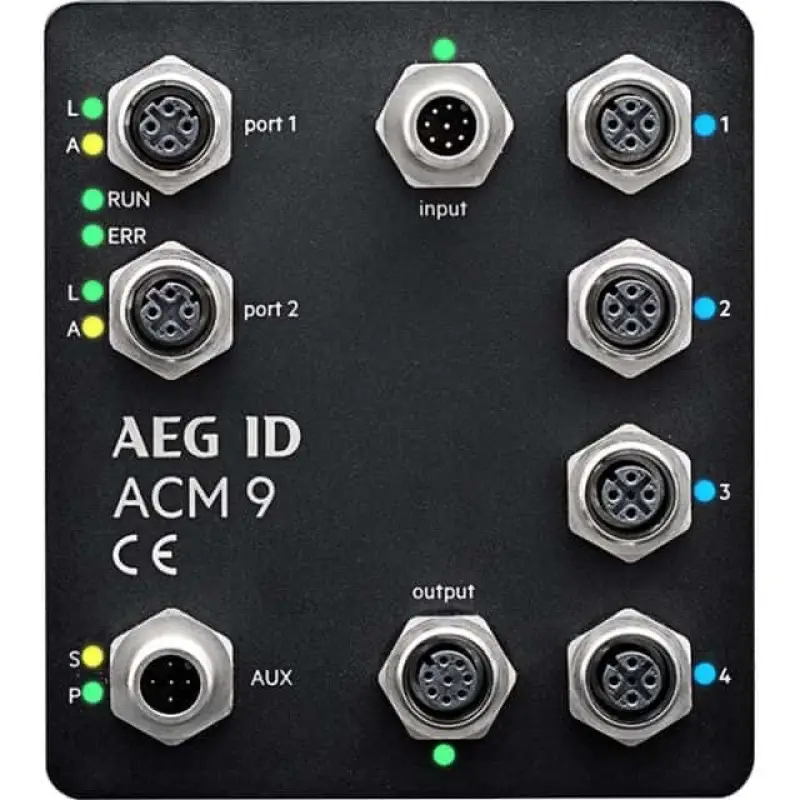

Product Images
