Technical Specifications and Installations Tips for shelving antenna: A spotlight on A7030C

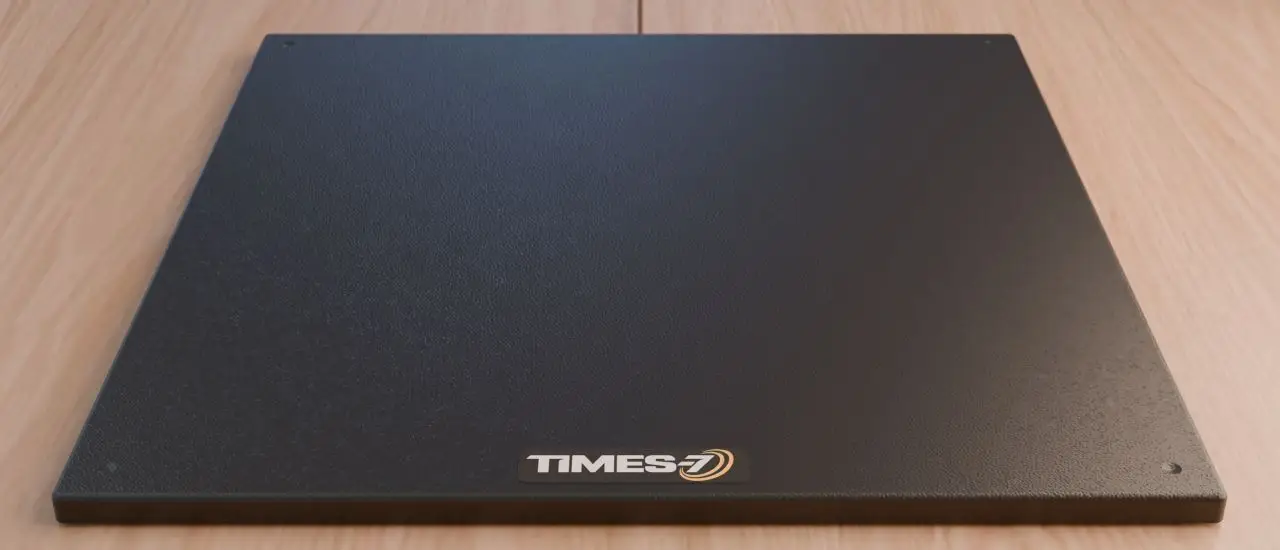

The SlimLine A7030C is a versatile, ultra-low-profile antenna designed for various RFID deployments. (Image: Times-7)

Technical Specifications & Installations Tips for Shelving Antenna

Times-7 · October 11, 2024 · 4 min
Modal to share this post

A Spotlight on Times-7’s A7030C

The main purpose of this Times-7 blog is to provide a comprehensive guide on the technical specifications and installation tips for the SlimLine A7030C shelving antenna. This includes highlighting its benefits, installation methods, and addressing common questions about its application. The blog aims to educate and inform potential users, particularly those in retail, healthcare, and similar industries, about the advantages and practicalities of implementing smart shelving solutions using this specific antenna model.

Smart shelving solutions are revolutionizing the way businesses manage and track inventory (Kanban systems are an example of this). Utilizing advanced RFID technology, these systems offer real-time tracking and management, making them indispensable in

1. Retail applications (Smart shelving)

2. Healthcare applications (Pharmaceutical refrigeration)

3. Industrial applications (Warehouse Kanban system) and various other industries.

This blog will delve into the technical specifications and installation tips for the SlimLine A7030C multi-purpose antenna, part of Times-7’s shelving antenna range.

Overview of the SlimLine A7030C Antenna

The SlimLine A7030C is a versatile, ultra-low-profile antenna designed for various RFID deployments. Its durable design makes it ideal for embedding in smart cabinets or integrating with shelving systems.

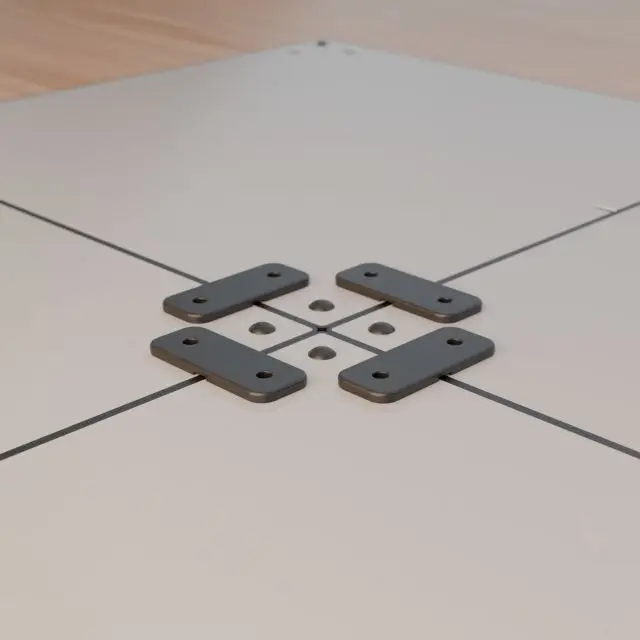

The key benefits of the A7030C include good near-field performance and the ability to create a confined read zone at low-medium power. Interconnected feet accessories also allow for array configurations.

Technical Specifications & Installations Tips for Shelving Antenna

Key Technical Specifications

  • Dimensions: 300 mm x 300 mm x 8.5 mm (11.5 mm with feet) | 11.81″ x 11.81″ x 0.33″ (0.45″ with feet)
  • Frequency Range: 902-928MHz (FCC); 865-868MHz (ETSI)
  • Connector Type: SMA female standard
  • Antenna Gain: 6dBi Circular
  • Radome Material: Durable ABS

Installation Tips

  • Ensure you have the A7030C antenna and a UHF reader, either connected directly to the antenna or via hubs for multiple antennas.
  • Metal shelves can affect the read zone. Consider material and placement carefully.
  • Position the antenna to cover the intended tracking area. Overhead placement works best for wide coverage, while placing it under items helps confine the read zone. Optimize item density and tag configuration to avoid dead spots or stray reads.

Step-by-step Installation Guide

There are 3 mounting options:

  • Flush/ screwed onto shelf
  • Built into shelf
  • On shelf placement

(Inter-connected/ single silicone feet accessories provide friction, preventing the antenna from sliding off)

Connecting the Antenna

Attachment:
Secure the SMA female connector to the corresponding cable, ensuring a tight fit to prevent signal loss.

Setup:
Connect the RFID reader to the antenna and calibrate the system for optimal performance.

Maintenance:
Regularly check connections and clean the antenna surface to maintain efficiency.

FAQs for Setting Up a Smart Shelving System

Compatibility with Existing Infrastructure

Q: Will the new system integrate seamlessly with existing shelves, cabinets, and other infrastructure?

A: The SlimLine A7030C’s ultra-low profile and flexible mounting options make it easy to integrate into a variety of setups, ensuring compatibility with most existing systems.

Installation Complexity

Q: How difficult and time-consuming will the installation process be?

A: With its interconnected feet accessories and easy mounting options, the SlimLine A7030C is designed for straightforward installation. Installation guides are available to assist with the process.

Reliability and Durability

Q: Will the system be reliable and durable enough to withstand the working conditions?

A: The A7030C antenna is IP54 rated and made with a durable and fire-retardant ABS radome. It is designed for consistent and continuous operation.

System Scalability

Q: Can the system be scaled to accommodate future growth or changes in inventory management needs?

A: The design of the A7030C and accessories allows for easy physical scalability. Additional antennas can be added to expand coverage as needed up to the limit of your readers.

The SlimLine A7030C antenna is an exceptional choice for businesses looking to implement smart shelving solutions. Its scalable design, combined with robust performance, ensures seamless integration and reliable operation.

By following the installation tips outlined in this guide, you can maximize the efficiency and longevity of your smart shelving system.
