Key takeaways
- Ultrasonic sensor for tank and silo level monitoring
- LoRaWAN enables long-range wireless data transmission
- Battery life approximately 10 years under normal conditions
- Robust IP66/IP67 weatherproof design with GPS integration
Talk to the product expert
Daniel Möst, New Business Development Manager
Detailed product information
Product Description

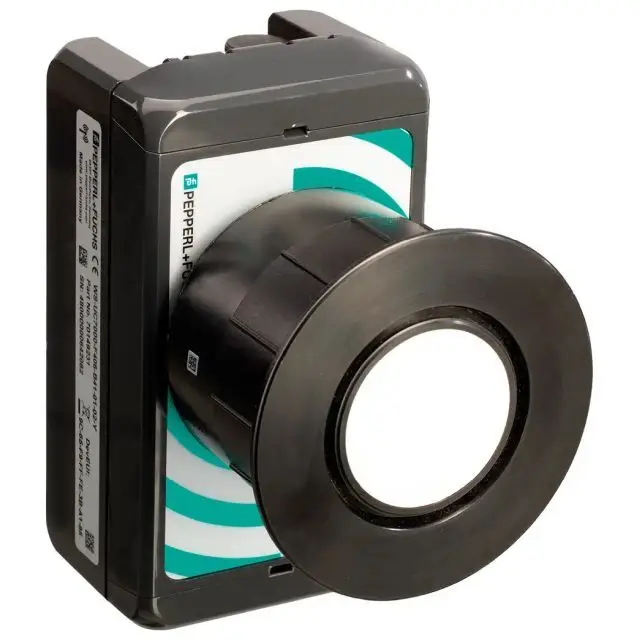

The WILSEN.sonic.level WS-UC7000-F406-B41-01-02 ultrasonic wireless sensor from Pepperl+Fuchs is specifically designed for level monitoring in tanks and silos. The sensor is battery-powered and uses LoRaWAN technology for long-range data transmission. With a detection range of 500 to 7000 mm and a resolution of 1 mm, it delivers precise measurement values.
Key Features
Remote monitoring of fill levels, liquid levels, and distances
LoRaWAN downlink channel for querying and adjusting parameter values
Bluetooth interface for commissioning, parameterization, and diagnostics via mobile device and dedicated app
Advantages
Long battery life of approx. 10 years under Central European environmental conditions
Robust and weatherproof with IP66/IP67 protection
Integrated GPS sensor for geolocation
Flexible measurement interval from 10 minutes to 24 hours
For commissioning, parameterization, and further information, a quick start guide, a manual, and other technical documents are available on the Pepperl+Fuchs website.
- Entry Type
- Ultrasound
- Coverage area
- 500 ... 7,000 mm
- Resolution
- 1 mm
- Battery type
- High-performance lithium battery, 3.6 V, 13,000 mAh
- Battery life
- Approximately 10 years under typical Central European conditions
- Interface 1
- Bluetooth 5.0 LE, +8 dBm, 2402 ... 2480 MHz
- Interface 2
- LoRaWAN, Class A, transmission frequency 868 MHz, +14 dBm
- Protection rating
- IP66 / IP67
- Ambient temperature
- -25 ... 70 °C
- Dimensions (H x W x L)
- 133 mm x 92 mm x 182 mm
Pepperl-Fuchs WILSEN.sonic.level 70149230 ger.pdf
PDF, 1.22 MB
Product Images
