Cisper Introduces the 1W WattUp PowerBridge from Energous

Cisper is excited to introduce the latest Energous innovation - the 1W WattUp PowerBridge with omni-directional antenna, now available at Cisper. This state-of-the-art device, plays a key part in the 'Works with Wiliot' ecosystem, enhancing connectivity for diverse IoT applications.

Why choose the 1W WattUp® PowerBridge?

• Effortless Installation: Designed for easy mounting on walls or ceilings.
• Advanced Beacon Technology: Ensures seamless capture and transmission of Wiliot IoT Pixel beacons.
• Optimal Coverage: Ideal for large spaces, offering effective energizing and zoning.
• Sophisticated Chip Technology: Incorporates Energous EN4100 and EN3210 chips for top-notch performance.
• Versatile Use: Great for inventory tracking, RTLS, environmental monitoring, and more.

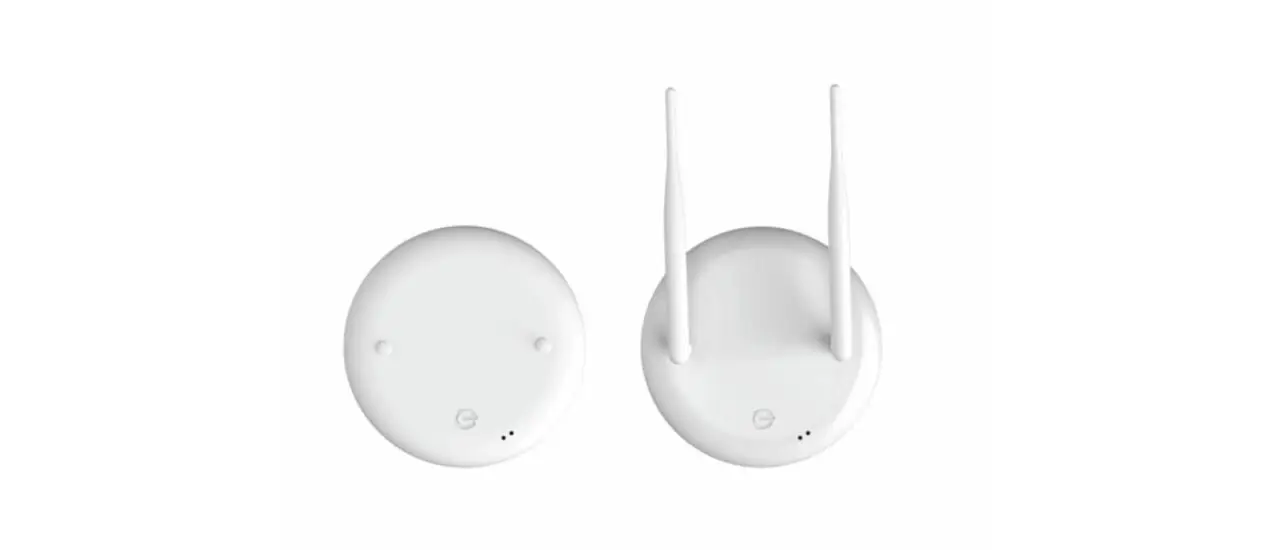

The 1W WattUp PowerBridge is a low-profile and lightweight integrated system designed for easy installation on both ceilings and walls to facilitate large coverage areas. Energous WattUp PowerBridges scan for Wiliot IoT Pixel beacons and can intelligently re-broadcast them to ensure all beacons are captured and passed to the Gateway device.

This 1W WattUp PowerBridge has an Omni-directional antenna and is recommended for energizing and zoning larger areas where there are no strict requirements with respect to the spatial RF delimitation. For PoC’s/deployments Energous advises to always use a set up that consist of PowerBridges with both Directional and Omni-directional antennas, this in order to get the best performance in the areas or zones that need to be energized.

The Energous PowerBridge uses the Energous EN4100 and EN3210 chips. The EN4100 is a highly integrated System-on-Chip (SoC) RF transmitter IC and the EN3210 is a 1.4W, high-efficiency, CMOS power amplifier (PA). The 1W WattUp PowerBridge can be used in combination with Wiliot Pixel beacons in applications such as; inventory and asset tracking, RTLS, temperature/humidity monitoring and safety and security solutions.
