Key takeaways
- Operates at 13.56 MHz with ISO/IEC 15693 compliance.
- Robust IP67 housing for harsh industrial environments.
- Up to 50 mm read/write sensing range.
- Low power usage of less than or equal to 1.2 W.
- Clear LED indicators for device status and activity.
Talk to the product expert
Sascha Päschel, Product Manager RFID
Detailed product information

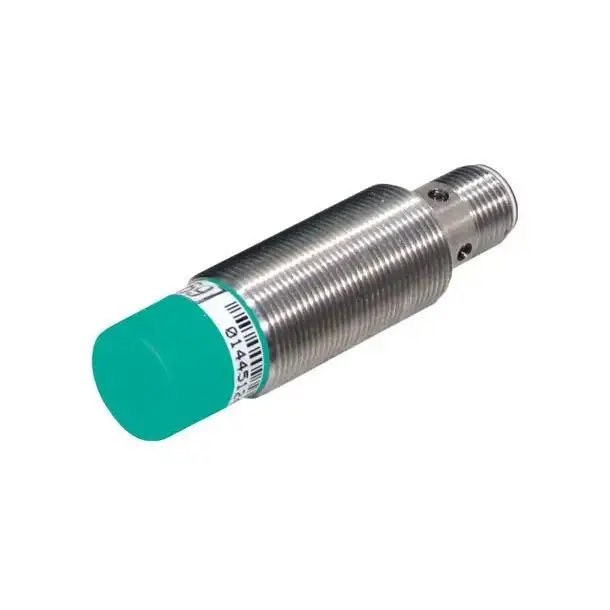

HF RFID read/write device, ISO 15693, for IDENTControl
The IQH1-18GM-V1 is a compact HF RFID read/write device for reliable identification tasks in industrial environments. Operating at 13.56 MHz and compliant with ISO/IEC 15693 (also ISO/IEC 18000-3), it is designed for short-range read/write applications and is suitable for FRAM transponders.
The device is intended for connection to an IDENTControl evaluation unit.
Highlights
Threaded M18 x 1 housing design, non-flush installation
V1 connector (M12 x 1)
Multihole green/yellow LED for clear status indication
green: power on
green flashing: read/write attempt performed
yellow: data carrier detected
IP67 protection for harsh industrial environments
Key technical data (selected)
Operating frequency: 13.56 MHz
Transfer rate: 26 kBit/s
Sensing range: read 0…50 mm, write 0…50 mm (application/tag dependent)
Max. transponder width: 45 mm
Power consumption: ≤ 1.2 W (supplied by IDENTControl)
Ambient temperature: -25…70 °C, storage: -40…85 °C
Materials: PBT / stainless steel
Dimensions: 66 mm length, 18 mm diameter, weight ~40 g
Recommended spacing between two heads: ≥ 30 mm (multiplex on) / ≥ 80 mm (multiplex off)
Typical applications
Assembly and handling technology, material flow control, intralogistics.

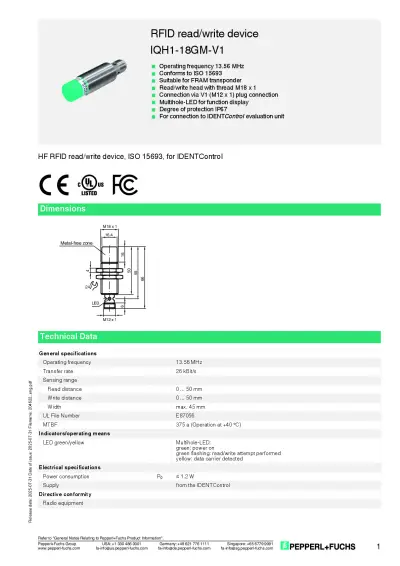

IQH1-18GM-V1 HF Reader Datasheet
PDF, 448.08 KB
