Key takeaways
- Supports global LTE-M and NB-IoT cellular technologies
- Optional AES-128 and TLS encryption ensures data security
- Built-in Li-Ion battery backup lasts up to 3 days
- Minimal configuration enables automatic operation
Talk to the product expert
Sylvo Jäger, CEO
Detailed product information
IoT BLE to Cellular Gateway
The iID®Gateway Ezurio MG-100 is an IoT BLE to Cellular Gateway designed to transmit data from TELID®7 BLE sensors to the iID® cloud. It enables automatic operation with minimal configuration effort and supports global cellular IoT technologies LTE-M and NB-IoT for worldwide use.
This gateway features optional TLS and AES-128 encryption for secure data transmission and includes a built-in backup battery to ensure continuous operation for up to 3 days during power outages.
Key Features
Transmits data from TELID®7 BLE sensors to iID® cloud
Automatic operation with minimal configuration
Supports LTE-M and NB-IoT global cellular IoT technologies
Optional AES-128 and TLS encryption for security
Built-in rechargeable Li-Ion backup battery
Wireless Interfaces
Bluetooth Low Energy (BLE) 5.0, operating in the 2.4 GHz ISM band
Multi-band cellular operation with LTE-M and NB-IoT
Mechanical & Environmental
Compact housing: 110.28 mm x 99.16 mm x 35.32 mm
Operating temperature: -20 °C to +60 °C
Protection class: No IP rating (IP6x enclosure options available upon request)
Energy and Operation
Input voltage range: 4.35 V to 5.5 V via micro-USB
Recommended power supply: 5 V, 2 A
Built-in rechargeable Li-Ion battery (2600 mAh, size 18650), backup time varies by usage
Transmission protocols: TELID®7 beacon protocol for BLE, UDP and MQTT for cellular
Data synchronization interval: Default 15 minutes, configurable on request

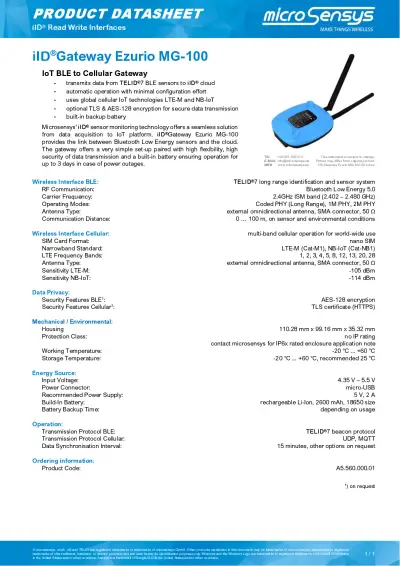

iID®Gateway Ezurio MG-100 Datasheet
PDF, 150.62 KB
Product Images
