Key takeaways
- Integrated antenna supports up to 50 cm reading range
- Supports EPC GEN2 and ISO 18000-63C RFID standards
- IP67 protection class for harsh industrial environments
- Multiple interfaces including CANopen and TCPIP PoE
Talk to the product expert
Benjamin Pfeiffer, Sales RFID & IoT
Detailed product information
The iDTRONIC MPR Series UHF Reader Integrated Antenna Mid-Range is a versatile and robust UHF RFID reader designed for industrial automation, logistics, production control, and multi-purpose applications.
It supports reading and writing of UHF RFID tags compliant with EPC GEN2 and ISO 18000-63C standards and comes with an integrated antenna for up to 50 cm reading range. Featuring an IP67 protection class, the device is suitable for demanding environments and provides real-time visual feedback through an integrated status LED.
The reader supports multiple communication interfaces including CANopen, RS232, RS485, TCPIP PoE, and Modbus, ensuring flexible integration. It is certified according to RoHS 2 and REACH standards and supplied with a software development kit that supports Windows operating systems and programming in C++ and binary command protocol, simplifying system integration.
Applications
Production Control
Industrial Automation
Multi-Purpose
Features
Integrated Antenna
M12 Connector
Status LED
Protection Class IP67
Up to 50 cm Read Range
Available Interfaces
CANopen
RS232
RS485
TCPIP PoE
Modbus
Standards Supported
EPC GEN2
ISO 18000-63C
Certifications
CE
RoHS 2
REACH
- Power Supply
- 7 - 24 Vdc
- Power Consumption
- < 50 mA, standby current < 1 mA (low power mode)
- Operating Frequency
- UHF: 865 - 868 MHz (ETSI)
- Antenna
- Integrated
- Reading Range
- Up to 50 cm
- RF Power
- Up to 26 dBm
- RF TX Speed
- Up to 848 kBd
- Interfaces
- CANopen, RS232, RS485, TCPIP PoE, Modbus
- Connector
- M12 Connector
- Protection Class
- IP67

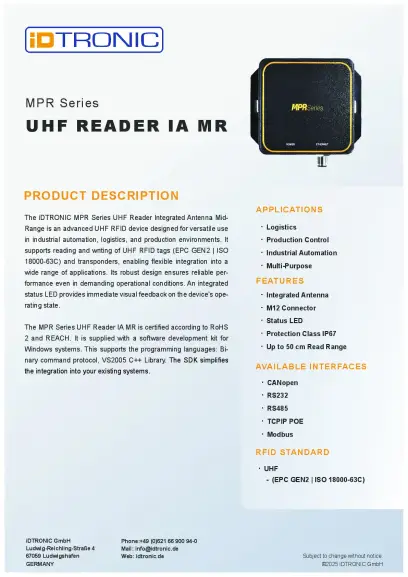

MPR Series UHF Reader IA Mid-Range (MR) Datasheet
PDF, 396.47 KB
Product Images
