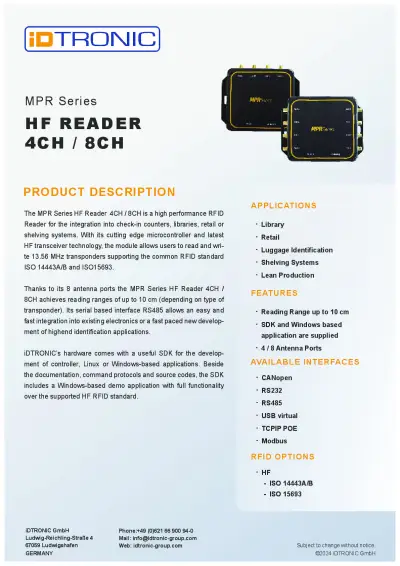

MPR Series HF Reader 4CH / 8CH

The MPR Series HF Reader 4CH / 8CH by iDTRONIC is a high performance RFID reader designed for integration into check-in counters, libraries, retail, or shelving systems. It utilizes cutting-edge microcontroller and latest HF transceiver technology to read and write 13.56 MHz transponders supporting ISO 14443A/B and ISO 15693 RFID standards.

Thanks to 8 antenna ports, it achieves reading ranges up to 10 cm depending on the transponder type. The serial-based RS485 interface enables easy and fast integration into existing electronics or development of new high-end identification applications.

The hardware comes with a comprehensive SDK supporting controller, Linux, and Windows-based applications. The SDK includes documentation, command protocols, source codes, and a fully functional Windows demo application covering all supported HF RFID standards.

Applications

• Library

• Retail

• Luggage Identification

• Shelving Systems

• Lean Production

Features

• Reading range up to 10 cm

• SDK and Windows-based application supplied

• 4 or 8 antenna ports

Available Interfaces

• CANopen

• RS232

• RS485

• USB virtual

• TCPIP PoE

• Modbus

RFID Options

• HF (ISO 14443A/B and ISO 15693)
