Embedded SMT Module LEGIC M800

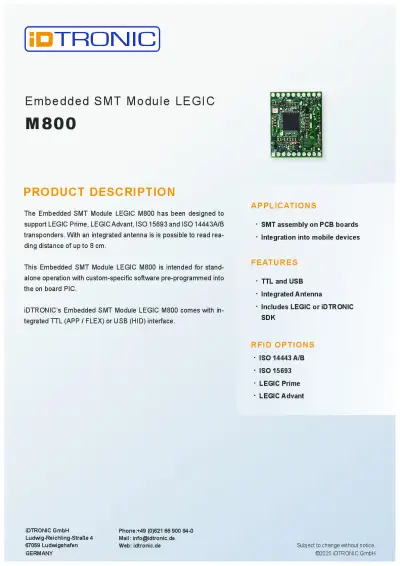

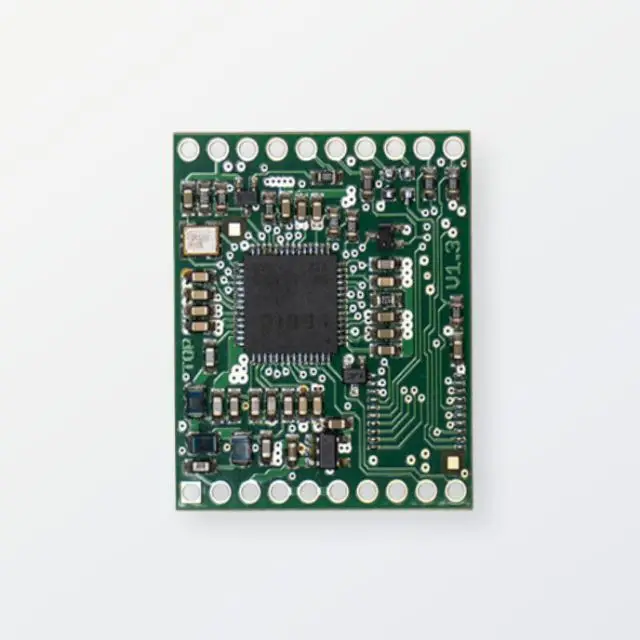

The Embedded SMT Module LEGIC M800 by iDTRONIC is designed to support LEGIC Prime and LEGIC Advant, as well as ISO 15693 and ISO 14443A/B transponders. Featuring an integrated antenna, it can read RFID tags at distances up to 8 cm.

This module is intended for standalone operation with custom-specific software pre-programmed into the onboard PIC microcontroller. It offers integrated TTL (APP/FLEX) and USB (HID) interfaces for flexible connectivity.

Applications

• SMT assembly on PCB boards

• Integration into mobile devices

Features

• TTL and USB interface options

• Integrated antenna

• Includes LEGIC or iDTRONIC SDK

• Supports multiple RFID standards (ISO 14443 A/B, ISO 15693, LEGIC Prime and Advant)

Supported RFID Standards / Tags

• ISO 14443 A: MIFARE Classic Mini / 1K / 4K, MIFARE Ultralight®, MIFARE Ultralight® C, MIFARE DESFire® EV1, MIFARE Smart MX, MIFARE Plus S/X, MIFARE Pro X, NTAG 21x (read/write), and UID read of other ISO 14443A tags

• ISO 14443 B: SRI4K, SRIX4K, AT88RF020, 66CL160S, SR176

• ISO 15693: EM4135, EM4043, EM4x33, EM4x35, I-Code SLI/SLIX, M24LR16/64, TI Tag-it HF-I, SRF55Vxx (my-d vicinity)

• LEGIC RF-Standard: Full read/write operation with LEGIC Advant and LEGIC Prime

Environmental and Regulatory

• Operating temperature range: -20 °C to +70 °C

• Complies with EMC, radio regulations, safety norms, RoHS 2 guidelines

• Certified FCC and CE

SDK and Compatibility

Compatible with Windows Server 2008/2012 R2 x64, Windows 7/8/8.1/10, Windows RT, Windows CE (4.2-7.0), Linux, Mac OSX, and Android using the FTDI USB VCP driver.

Reading distance depends on tag, antenna, and environmental conditions.
