iDTRONIC Embedded PCB Antennas for HF RFID Applications

Talk to the product expert

Benjamin Pfeiffer, Sales RFID & IoT

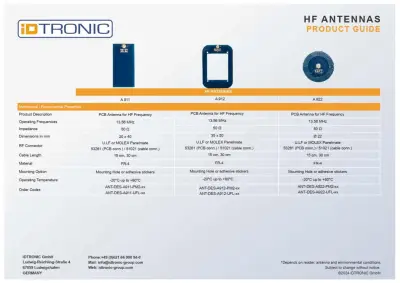

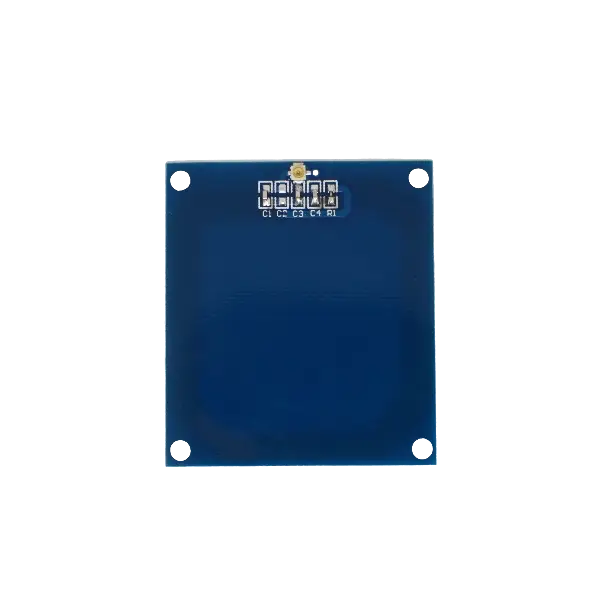

iDTRONIC HF PCB Antennas Product Guide

The iDTRONIC PCB Antennas are designed for High Frequency (HF) RFID applications operating at 13.56 MHz. These antennas provide versatile mounting options and are suitable for a wide range of environments and reader systems.

They support U.LF or MOLEX Panelmate RF connectors with options for PCB or cable connections.

Key Features

Operating Frequency: 13.56 MHz HF RFID
Impedance: 50 Ω
Material options include FR-4 and Flex CI6 for different models
Cable length options of 15 cm and 30 cm
Mounting options include mounting holes or adhesive stickers, depending on model
Operating temperature range from -20°C up to +80°C

Product Models

A911: 20 x 40 mm, FR-4, mounting hole or adhesive stickers
A912: 35 x 50 mm, FR-4, mounting hole or adhesive stickers
A922: Ø 22 mm, FR-4, mounting hole or adhesive stickers
A924: Ø 24 mm, FR-4, mounting hole or adhesive stickers
AC02: 30 x 80 mm, Flex CI6, adhesive stickers

Connectors

U.LF or MOLEX Panelmate
53261 for PCB connector
51021 for cable connector

Applications

Ideal for integration into RFID readers, systems requiring HF antennas for near-field communication, and various industrial and commercial RFID applications.
