Rugged RFID Handheld C9 RED

Rugged RFID Performance for Demanding Workflows

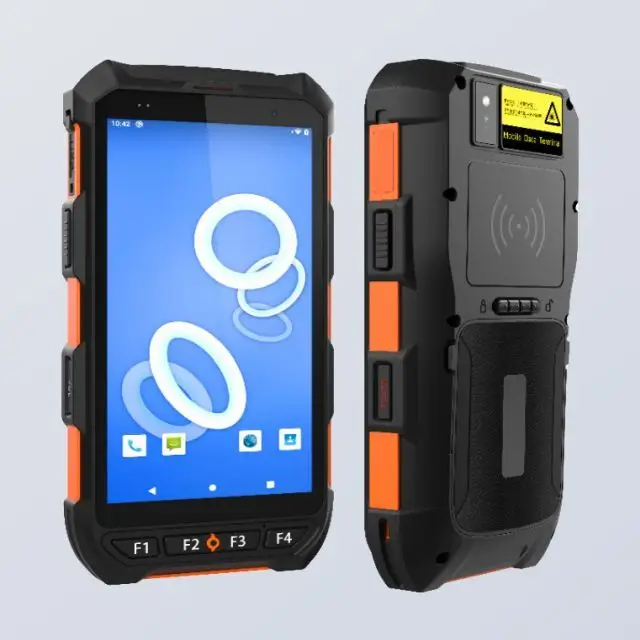

The powerful C9 RED is a revolutionary rugged handheld computer designed for demanding environments such as logistics, express delivery, retail, aviation, public safety, construction, field sales, and maintenance sectors. Featuring a 5.5 inch Gorilla Glass touchscreen with a resolution of 720 × 1440 pixels, this device ensures high visual standards.

Capable of capturing, extracting, and analyzing data in extreme and remote conditions, the C9 RED boasts an IP65 rated housing and up to 8 hours of operation time with its 5200 mAh battery. It runs on Android™ 13 "Tiramisu" powered by a high-performance Cortex A53 2.0 GHz octa-core processor, with memory options up to 4 GB RAM and 64 GB ROM.

The device supports multiple RFID configurations including UHF, HF-NFC, LEGIC, LF, and optional 2D barcode scanning, enabling versatile applications such as asset tracking and access control. The built-in 13 MP rear camera with autofocus and LED flash, along with a 5 MP front camera, facilitates damage reporting and documentation.

Connectivity options include dual 4G LTE and WiFi networks alongside Bluetooth v2.1+EDR to v4.2. The C9 RED offers security with PSAM support and comes with a comprehensive SDK for Android Studio or Eclipse.

Applications

• Logistics Applications

• Access Control

• Asset Tracking

• Maintenance

Key Features

• UHF, HF-NFC, LEGIC or LF RFID Reader options

• Optional 2D Barcode Reader

• 5200 mAh Rechargeable li-ion Polymer Battery

• Android™ 13 "Tiramisu" OS

• 4G LTE, Bluetooth, WiFi connectivity

• 5.5" Gorilla Glass Touchscreen

• 13 MP Rear Camera with Autofocus & LED Flash

• 5 MP Front Camera

• IP65 Protection Class

• SDK Included

RFID Options Supported

• UHF (EPC C1 GEN2 | ISO 18000-6C)

• HF (ISO 14443A, ISO 15693)

• NFC (NFC-IP1, NFC-IP2)

• LEGIC (13.56 MHz)

• LF (125 kHz | 134.2 kHz)
