Key takeaways
- Embeds directly in tires for permanent traceability
- Endures temperatures up to 200 °C and 3,000 kPa pressure
- Compatible with standard UHF frequencies (860–960 MHz)
- Proven reliability with over 100 million tires tagged
- Customizable for diverse applications and customer needs
Talk to the product expert
Randall Grein, RFID Business Development Manager
Detailed product information

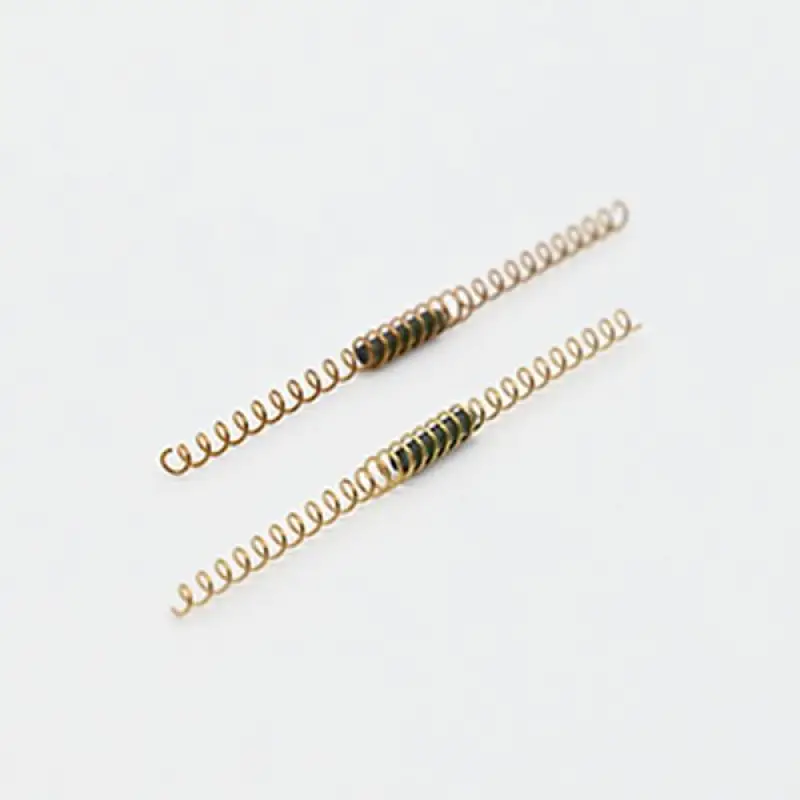

Hana RFID Linkless Tire Tag – Redefining Tire Traceability
Hana RFID’s Linkless Tire Tag is designed for direct embedding in a tire – or comparable applications – and sets new standards for durability and versatility. With temperature survivability up to 200 °C and pressure survivability up to 3,000 kPa, the tag seamlessly integrates into the tire mold during manufacturing and establishes a robust, permanent connection to the tire’s core.
It is fully compatible with standard UHF frequencies (860–960 MHz), and tuning is possible to optimize and maximize performance for each unique customer application.
Proven in the Field at Massive Scale
With over 100 million tires (2023) equipped with Hana’s embeddable tire tags and approximately 50 trillion miles covered without a single tag failure, Hana can be considered the authority in embeddable tire tagging.
This innovative, linkless design functions reliably throughout the entire tire life cycle and supports sustainability in the tire industry by enabling maintenance recording, inventory tracking, fleet management, recycling, and new digital business models.
The Linkless Tire Tag is suitable for a wide range of applications and can be safely used in buses and trucks, passenger vehicles, aviation, and agricultural tires. The improved durability resulting from the absence of a direct electrical connection between IC and antenna makes it an all-encompassing solution for the diverse needs of the tire ecosystem – especially in harsh environments.
Elevate your tire tracking capabilities with Hana RFID’s Linkless Tire Tag – a game-changer in tire traceability.
Key Facts
Designed to endure the entire tire life cycle
Survivability up to 200 °C and 3,000 kPa
Compatible with standard UHF frequencies (860–960 MHz)
Tuning options to optimize performance per customer application
Featuring chips from all major IC providers (e.g. Impinj, NXP, Alien, Asygn, RF Micron)
Operating temperature of -40 °C to +85 °C for most common use cases
Proven track record: >100 million tires equipped, ~50 trillion miles without a single tag failure
Customizable to specific customer requirements
Available for use in other (non-tire) applications
Applications
Retail
Logistics
Automotive
Manufacturing
Governmental
Fleet management and telematics
Aviation and off-highway (e.g. agriculture)
Product Images
