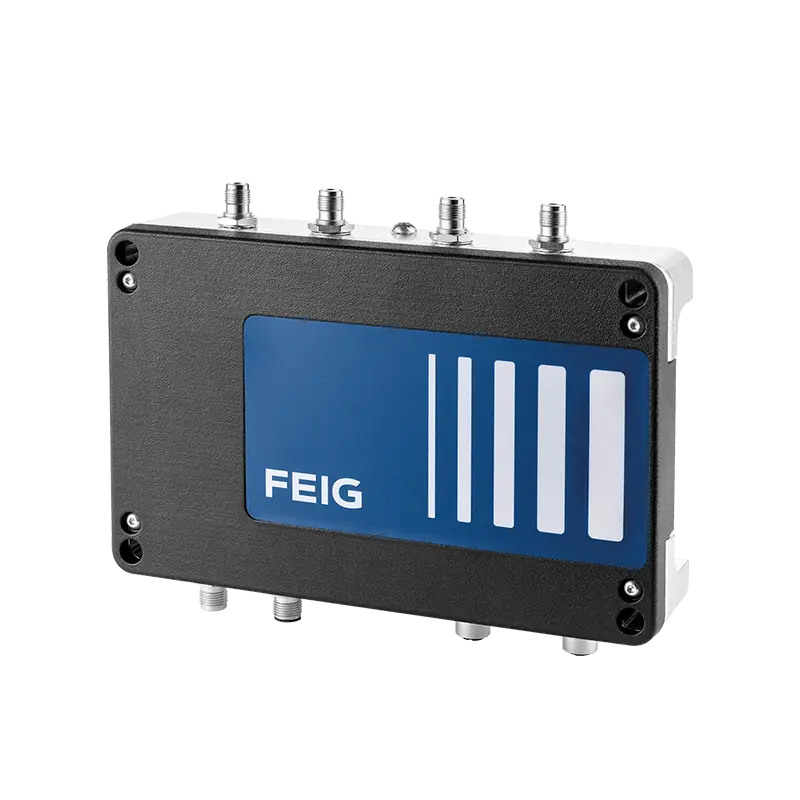

Industrial UHF Long Range Reader ID LRU4000X

Industrial UHF Long Range Reader for applications in industrial and railway environment

The ID LRU4000X is a robust and versatile UHF long range reader specially designed for harsh industrial and railway environments.

Featuring a sturdy housing with M12 connectors and IP65/IP67 protection, this reader supports applications both indoors and outdoors, including machine automation, forklift and conveyor systems, as well as railway onboard tasks such as reading position markers and updating passenger information.

Key Features

• High receiver sensitivity for enlarged and homogeneous tag detection

• 2 Watt configurable output power with 4 antenna ports and internal multiplexer

• Support for EPC Class1 Gen2 and ISO 18000-63 transponders including secure chip standards like NXP UCODE DNA

• Secure storage of application keys using a Secure Element

• Industrial-grade inputs and outputs: 2 inputs, 2 outputs, and 2 relay outputs for external component control and event signaling

• Edge computing platform running Linux OS for custom application deployment

• Multiple reader modes including Host, Buffered Read, and Notification Modes

• Fault protection against antenna shortcuts, mismatching, and electrostatic discharge

Applications

• Industrial and logistics long range RFID tasks

• Railway onboard applications compliant with relevant rail environment standards

Mounting Options

Multiple mounting options including flat surface, VESA post mounting, DIN rail adapter, or vehicle chassis mounting for flexible integration.

Conformity and Compliance

The reader meets radio licensing and EMC standards across Europe, UK, USA, and Canada, as well as safety, cyber security, vibration, shock, fire protection, wet heat, and salt mist standards for railway environments.
