ID MR103 / ID MRM103 HF RFID Mid Range Reader

Reader & Writer | LF/HF RFID

Key takeaways

  • Reads up to 30 transponders simultaneously
  • Operates at 13.56 MHz with ISO 15693 support
  • Multiple communication interfaces included
  • Available as module or housing version
Head of Sales IDENTIFICATION

Talk to the product expert

Daniel Büth, Head of Sales IDENTIFICATION

Detailed product information

The ID MR103 / ID MRM103 is a compact HF Mid Range Reader designed for various applications in retail, industry, logistics, and libraries. It reads transponders according to ISO 15693 at a frequency of 13.56 MHz with a read range of up to 40 cm depending on the antenna used.

Key Features

  • Compact multitasking reader capable of reading up to 30 transponders simultaneously with anti-collision function.

  • 1.5 W RF output power for reliable mid-range identification.

  • Multiple communication interfaces: Ethernet (TCP/IP), USB Powered, USB 2.0, and RS232.

  • Available as module (ID MRM103) or housing version (ID MR103).

  • Supports 3 different reader modes: ISO Host Mode, Scan Mode, and Notification Mode.

  • Compatible with previous models (ID ISC.MR102).

  • Industrial-grade plastic housing (ABS) with IP30 protection for the housing version.

  • LED indicator with multi-color support.

  • Antenna output includes switchable DC voltage to power LEDs in connected antennas.

Applications

Ideal for integration into systems for retail, libraries, logistics, and industrial environments where mid-range RFID identification is needed.

Technical and Operational Highlights

The reader supports ISO 15693 / ISO 18000-3 Mode 1 transponders including various major chip manufacturers like NXP I-Code and Infineon my-d. It also features antenna shortcut detection, temperature control, and full support for external multiplexers (ID ANT.Mux.5).

Operating temperature ranges from -25 °C to +55 °C, with storage from -40 °C to +85 °C. Relative humidity tolerance is 5% to 95% non-condensing.

This reader is a robust choice for reliable mid-range RFID reading in demanding environments.

Operating Frequency
13.56 MHz
Read Range
Up to 40 cm (depending on antenna)
RF Output Power
Standard 1.2 W ±1 dB, High Power 1.5 W ±1 dB
Power Supply
12 V DC up to 24 V DC (housing/module versions), USB Type-C 5 V DC / 1.5 A (ID MR103-USBC)
Weight
MR103: 150 g, MRM103: 56 g
Dimensions
MR103: 145 x 85 x 22 mm, MRM103: 145 x 77 x 17 mm
Housing Material
Plastic ABS (housing version)
Protection Class
MR103 IP30, MRM103 none
Interfaces
RS232, Ethernet (TCP/IP), USB 2.0
Supported Transponders
ISO 15693 / ISO 18000-3 Mode 1, I-Code 1

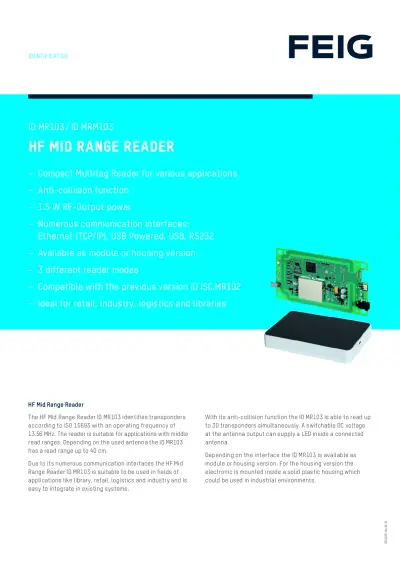

ID MR103 / ID MRM103 Datasheet

ID MR103 / ID MRM103 Datasheet

PDF, 232.26 KB

Open PDF

Product Images

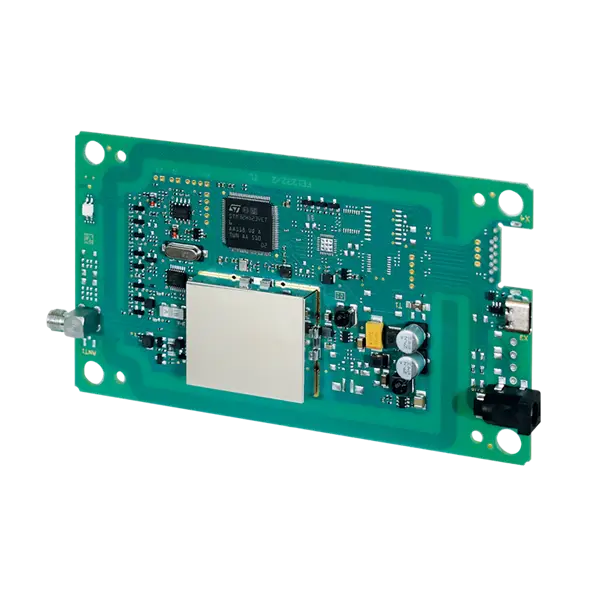

Das HF Mid Range Lesermodul ID MRM103 identifiziert Transponder gemäß ISO 15693 mit einer Betriebsfrequenz von 13,56 MHz.
Das HF Mid Range Lesermodul ID MRM103 identifiziert Transponder gemäß ISO 15693 mit einer Betriebsfrequenz von 13,56 MHz. Source: FEIG ELECTRONIC

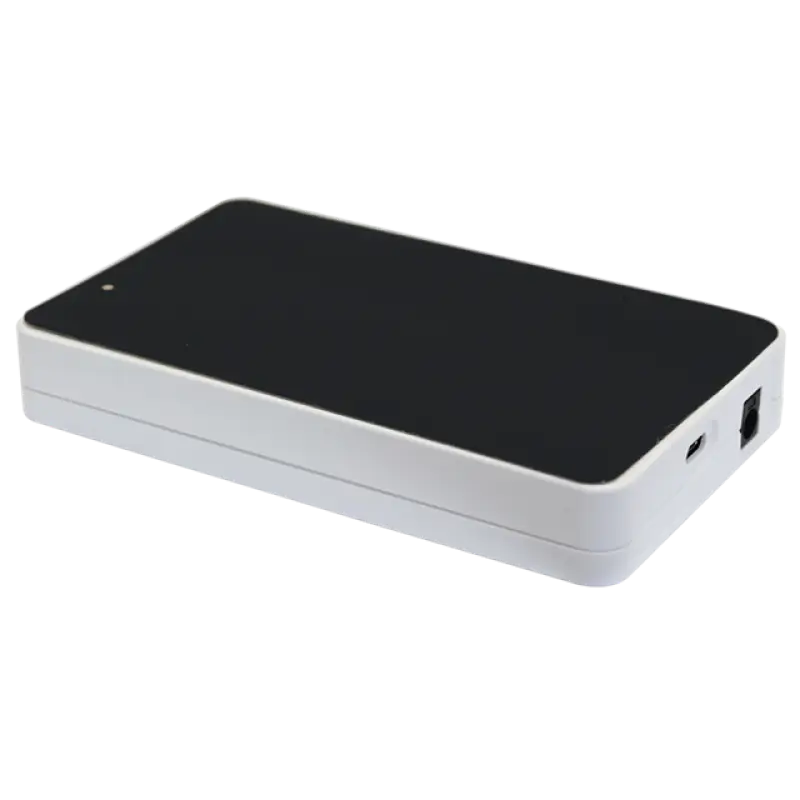

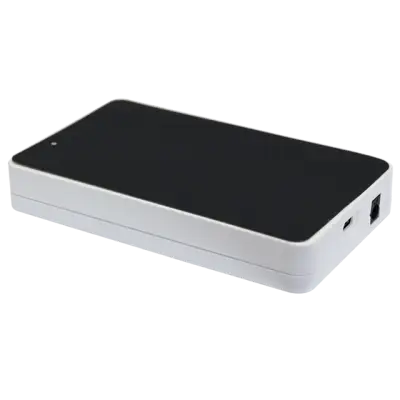

Das HF-Mittelbereichslesegerät ID MR103
Das HF-Mittelbereichslesegerät ID MR103 Source: FEIG ELECTRONIC
