Detailed product information
Offering Security, Sensing and Tamper Protection, While Enabling the Next Level of Trusted Applications at Scale
With the new NTAG 223 DNA and NTAG 224 DNA line, NXP establishes a new level of connectivity – enabling an ‘Internet of Everything’ where businesses and their consumers can use NFC technology in fully passive mode to authenticate, protect, sense, and monitor in powerful new ways.
The NTAG 22x DNA line of tag ICs is targeted at customers who need high-volume tagging solutions at an affordable cost, without sacrificing advanced security and functionality.
The NTAG 22x DNA line is powered by SUN (Secure Unique NFC) message authentication with AES cryptography and status awareness using conductance or capacitance. The product’s application space is virtually unlimited, since it can be used as an authentication tag, an anti-tampering tag, or a simple battery-free sensing tag, expanding the reach of smart, trusted IoT objects.
Brochure (nxp.com/docs/en/brochure/NXP-NTAG-22x-DNA-Brochure.pdf)
Key Features
Full NFC interoperability – ISO/IEC 14443-A communication, NFC Forum Type 2 Tag
Standard AES-128 cryptography and CC EAL3+ certification

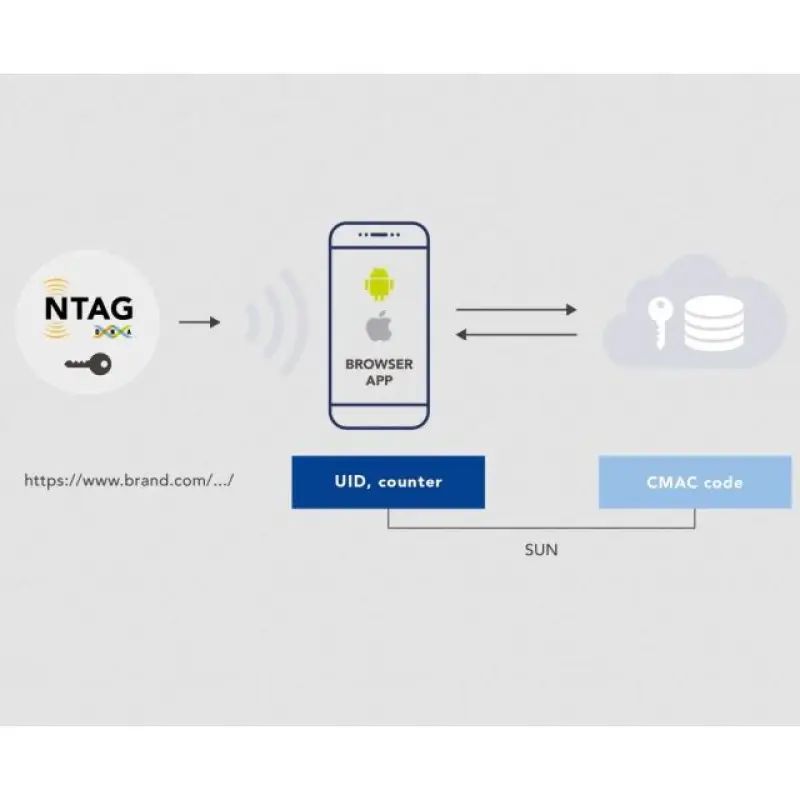

SUN (Secure Unique NFC) message authentication for advanced data protection within NFC (NDEF) read operation
User memory of 144 bytes (NTAG 223 DNA) or 208 bytes (NTAG 224 DNA)
User memory protected by password (NTAG 223 DNA) or 3-pass mutual authentication (NTAG 224 DNA)
Customizable Originality Signature (48-byte based on ECC) to validate tag origin
Conductive or capacitive tamper-protection mechanisms (NTAG 22x DNA StatusDetect)
Capacitive sensing interface to external capacitor to measure changes in environmental conditions, e.g. humidity, pressure (StatusDetect)
7-byte Unique ID
Automatic NFC tap counter
On-chip assembly of item URLs with ASCII mirrors (UID, counter, tamper status, CMAC)
50 pF input capacitance for compact antenna design
Applications:
1. Secure Authentication
Advanced anti-counterfeiting and brand protection
Supply-chain visibility and control
2. Next-Gen User Interactions
Hyper-personalized marketing campaigns
Status-aware messaging
Pre-/post-retail messaging
In addition, our NTAG 22x DNA StatusDetect enables advanced product integrity protection:
3. Product Integrety Protection
Anti-tampering and refill-fraud protection
Security sealing
Leak detection
Sensing of specific conditions, e.g. humidity, fill level
