Detailed product information

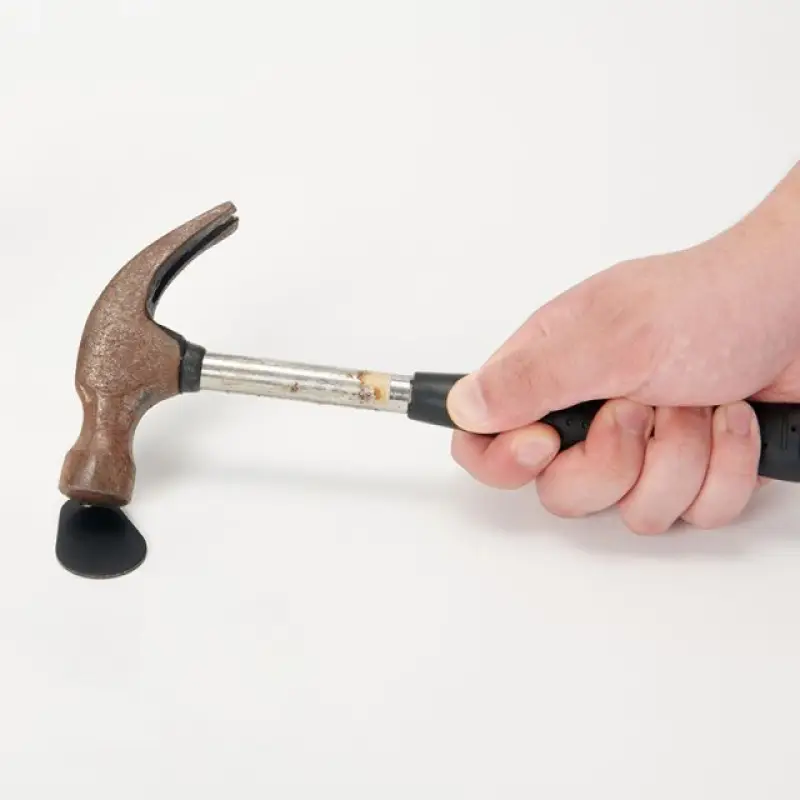

Made with FR4, a glass epoxy, E-Garde hard tags are reliable and durable. The tags have high shock resistance and are water proof. With an operating temperature range from -20 to 130 °C, the hard tags are suitable for many applications in harsh environments, such as in heavy industries, on construction sites and on “automated guided vehicles” (AGV).

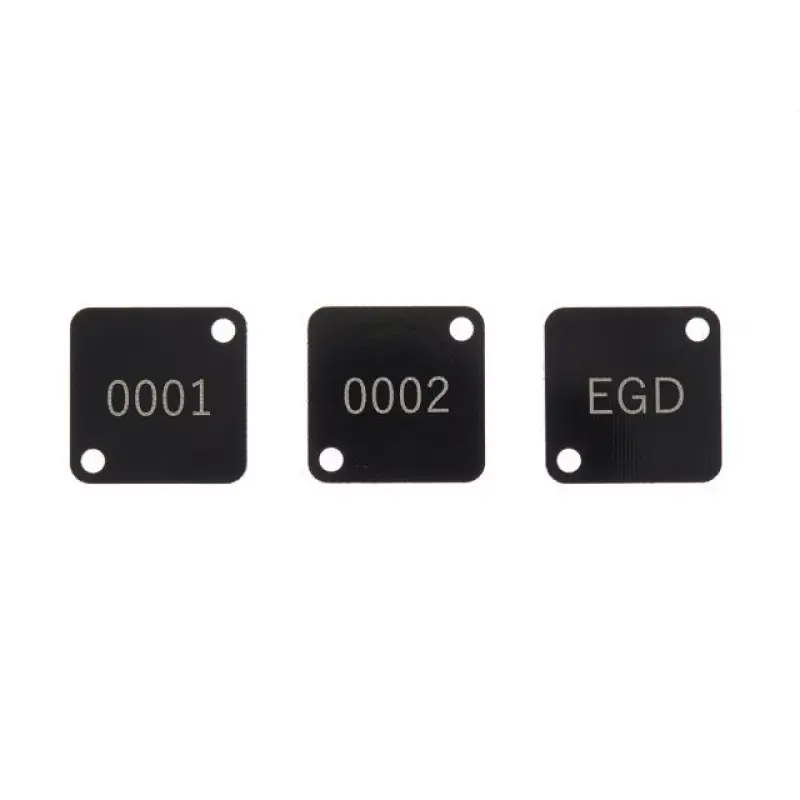

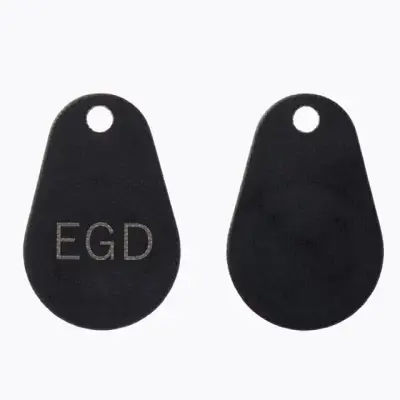

The hard tags are available in two shapes: as a teardrop or a square, with one and two holes respectively. These holes make it easy for the tags to be attached to objects and can also be used as a key ring. By attaching a ferrite sheet, it can also be used as an on-metal tag. E-Garde offers many options for chip selection. Laser engraving is also available.
Key Facts
Dimensions: 30 × 45 mm (teardrop) / 34 × 34 mm (square)
Material: FR4
Operating Temperature: -20 to 130 ℃
RFID Chip: MIFARE 1K / MIFARE UL / ICODE SLIX / NTAG
Surface: Laser engraving
Related Products: Dual tag/ RFIR Sensor tag / RFID Data logger
Applications
Asset tracking and logistics
Returnable transport items
Tool tracking management
Landmark for AGV
